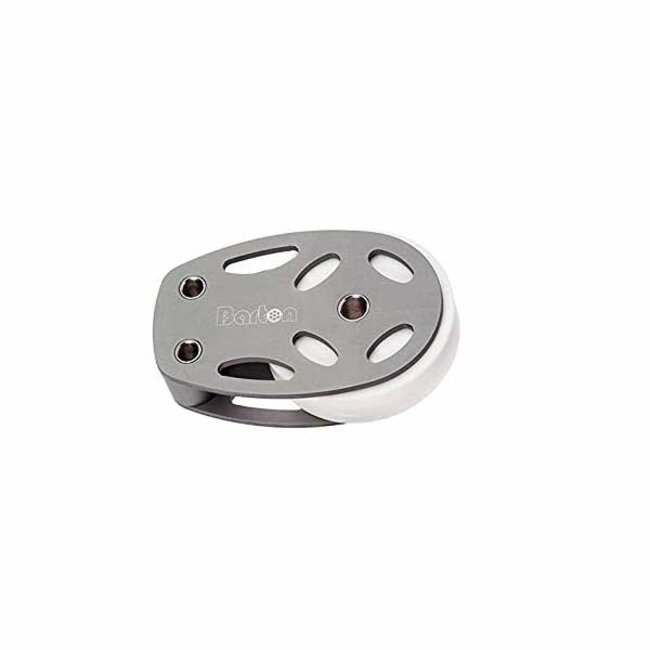

Barton Marine Barton Foot Block 65mm

Product description

Manufactured from marine grade aluminium and grey anodised for high UV stability and durability.

• Sheaves are precision turned from solid ‘Ertalyte’ bar with a profile that is kind to modern ropes.
• Running on a large diameter centre bearing for easy running under high loads.
• Fitted with a stainless steel bow shackle to allow for snag-free operation.
• Hollow stainless steel rivets allow for through-bolt fastening, giving added strength.
• Through-bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note; stacking blocks will reduce working loads.
• Fastenings of the minimum diameter suggested should be used to gain full load capability .
• Ensure that suitable mounting pads are used under deck.

Specifications

• Sheave Ø 65 mm
• Sheave Width 18 mm
• Max Line Ø 16 mm
• Break Load 1600 kg
• Safe Working Load 800 kg
• Length 100 mm
• Weight 211 g
