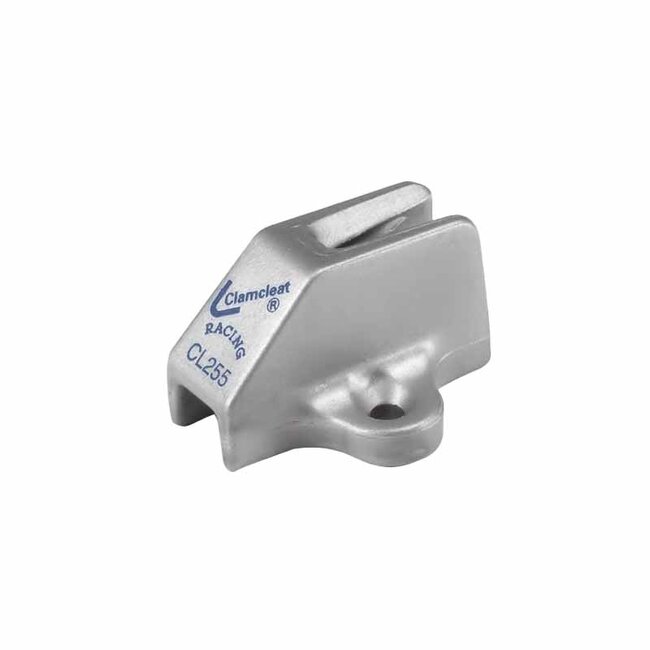

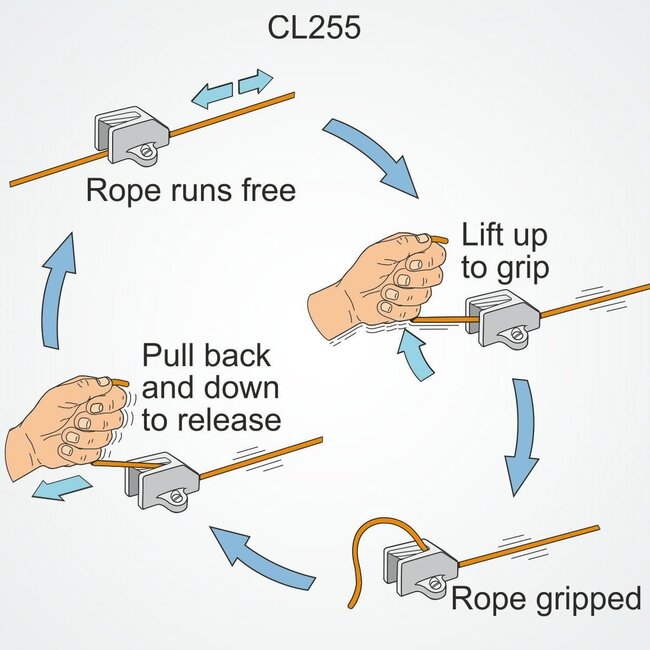

The teeth in the CL255 are above the rope so that when un-cleated, the rope automatically drops away and can run freely. Making it ideal for through-deck or through-mast applications.
| Technical Details | Metric | Imperial |
|---|---|---|
| Rope Diameter | 3 - 6mm | 1/8 - 1/4" |
| Material | Aluminium | Aluminium |
| Hole Centres | 27mm | 1 1/16" |
| Length | 46mm | 1 13/16" |
| Width | 43mm | 1 11/16" |
| Height | 26mm | 1 1/32 |
| Bolt Size | M4 | #8-32. 5/32" |
| Screw Size | 4.2 | No 10 |
| Weight | 28gms | 1oz |
