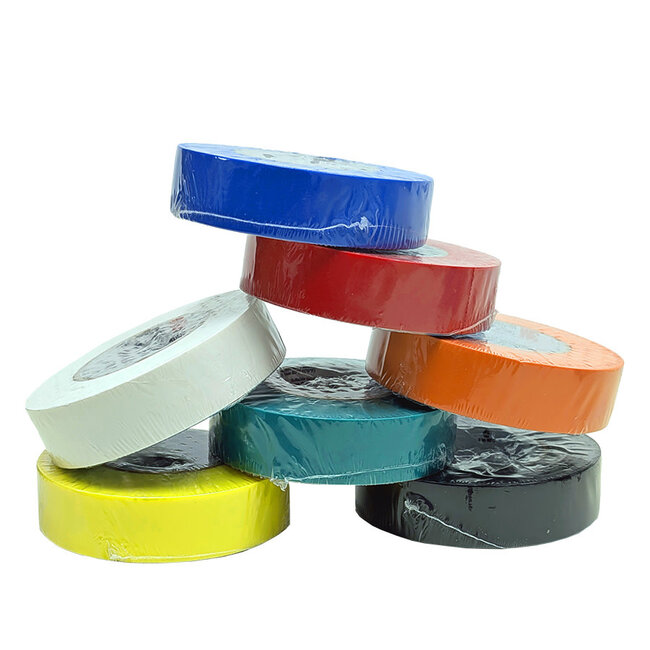

The 3M™ Temflex™ Vinyl Electrical Tape 165 is a good quality, multi-purpose vinyl insulating tape. This tape has great resistance to moisture and varying weather conditions.
The 3M™ Temflex™ Vinyl Electrical Tape 165 is a polyvinyl chloride (PVC) tape that is flame-retardant and conformable. This tape provides great mechanical protection with minimum bulk. The 3M™ Temflex™ Vinyl Electrical Tape is a UL Listed and CSA Certified “Insulating Tape.” No solvents are used in the manufacturing process.
|
Adhesive Type |
Rubber |
|
Applications |
Insulation |
|
Backing (Carrier) Material |
PVC |
|
Brands |
Temflex™ |
|
Dielectric Strength |
40 kV/mm |
|
Elongation at Break |
200% |
|
Flame Retardant |
Yes |
|
Maximum Operating Temperature (Celsius) |
90 °C |
|
Maximum Operating Temperature (Fahrenheit) |
194 null |
|
Minimum Operating Temperature (Celsius) |
0 °C |
|
Minimum Operating Temperature (Fahrenheit) |
32 null |
|
Shelf Life |
5 yr |
|
Tape Grade |
General Use |
|
Voltage Rating |
600 V |
|
Overall Length (Imperial) |
60 ft |
|
Overall Length (Metric) |
18 m |
|
Overall Width (Imperial) |
0.75 in |
|
Overall Width (Metric) |
19 mm |
|
Total Tape Thickness without Liner (Imperial) |
0.006 in |
|
Total Tape Thickness without Liner (metric) |
0.15 mm |
