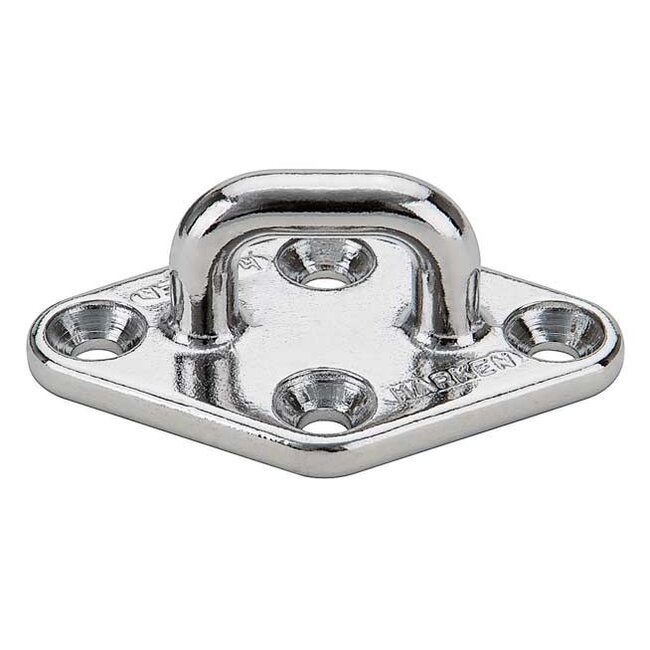

79 mm Diamond Padeye
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.
Specifications:
- A (mm)79 mmA (in)3 1/8 in
- B (mm)51 mmB (in)2 in
- C (mm)60 mmC (in)2 3/8 in
- D (mm)32 mmD (in)1 1/4 in
- E (mm)30 mmE (in)1 3/16 in
- F (mm)14 mmF (in) 9/16 in
- G (mm)22 mmG (in) 7/8 in
- Weight: 135 g | 4.75 oz
- Maximum Working Load (angle 1): 1770 kg | 3800 lb
- Maximum Working Load (angle 2): 2270 kg | 5000 lb
- Maximum Working Load (angle 3): 1950 kg | 4300 lb
- Breaking load (angle 1): 3540 kg | 7800 lb
- Breaking load (angle 2): 4535 kg | 10000 lb
- Breaking load (angle 3): 3900 kg | 8600 lb
- Fasteners: 6 FH mm | 1/4 FH in
