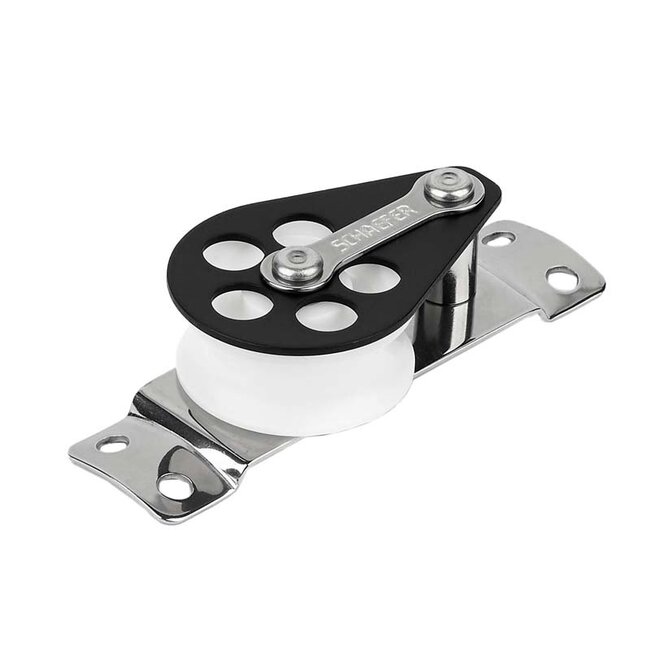

Aluminum cheek block with curved base
Curved stainless steel base fits spar diameters up to 2".
Delrin plain bearing sheave ensures high safe working load and is good for static loads.
Specifications
- Sheave Ø: 1-7/16" | 37 mm
- Max Line: 7/16" | 11 m
- Length" 3-11/16" | 949 mm
- Width: 1" | 25 mm
- Height: 3/4" | 19 mm
- Fasteners: | 4 #10 RH | 5 mm
- Center to Center: 3-3/16" | 94 mm
- SWL: 1000 lbs. | 450 kg
