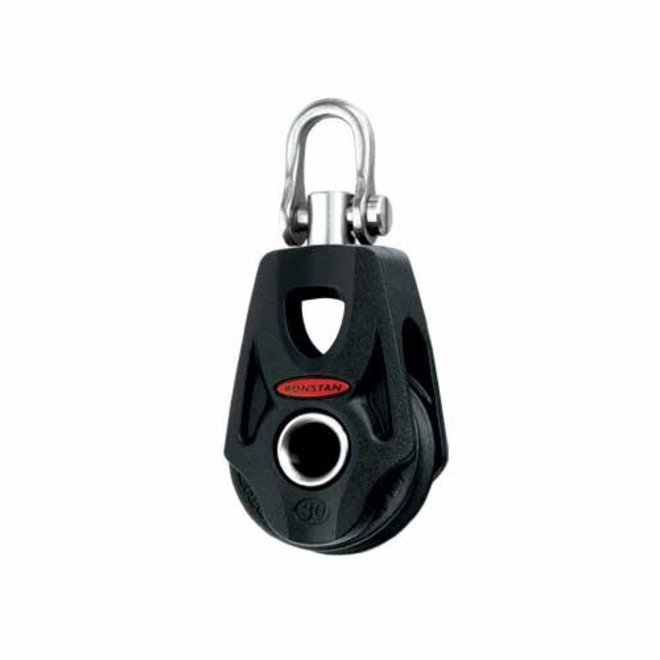

Orbit Series 30 Single Swivel with Becket

Product description

Single Series 30 Orbit block with soft or hard shackle attachment point. The proven Ronstan 2-stage bearing system features high compression grade Acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.

The sheave and bearing system is supported by a fibre-reinforced load frame, computer modelled and optimised using advanced stress analysis methods.

FEATURES

• Lightweight
• Highest working load in its class
• Secure, versatile attachment
• Low profile and compact
• Ultra low profile thru-sheave becket
• Low friction 2-stage ball bearing system provides consistent performance over the full working load range.

Specifications

• Sheave Ø 30 mm
• Max Rope 8 mm
• M.W.L. 300 kg
• Clevis Pin Ø 4mm
• B. L. 600 kg
• Weight 22 g
