29mm Carbo Blocks
The compact 29 mm Carbo is extremely strong. Use our miniature Carbo as a mainsheet block on small dinghies such as the Optimist, or for low-friction control blocks on any size boat.

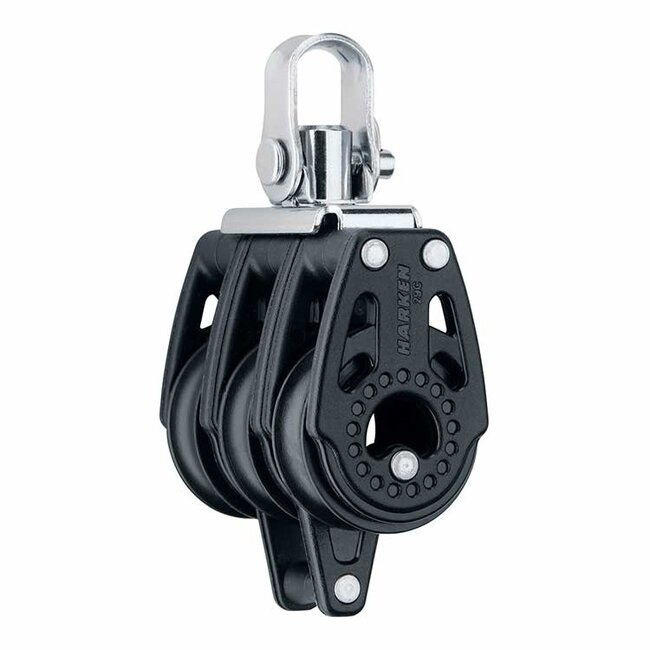

Doubles and triples feature U-Locks to hold the swivel in front/side position, or to let it spin freely. The triple’s compact cam arm supports high-load purchases of 5:1 or 6:1. The line-shedding cheek block features a small mounting footprint and drainholes.
- Traveler controls
- Flag halyards
- Sheave Ø 29 mm | 1-1/8 in
- Length 85 mm | 3-3/8 in
- Weight 77 g | 2.7 oz
- Shackle pin Ø 5 mm | 3/16 in
- Maximum line Ø 8 mm | 5/16 in
- Maximum working load 449 kg | 990 lb
- Breaking load 907 kg | 2000 lb
