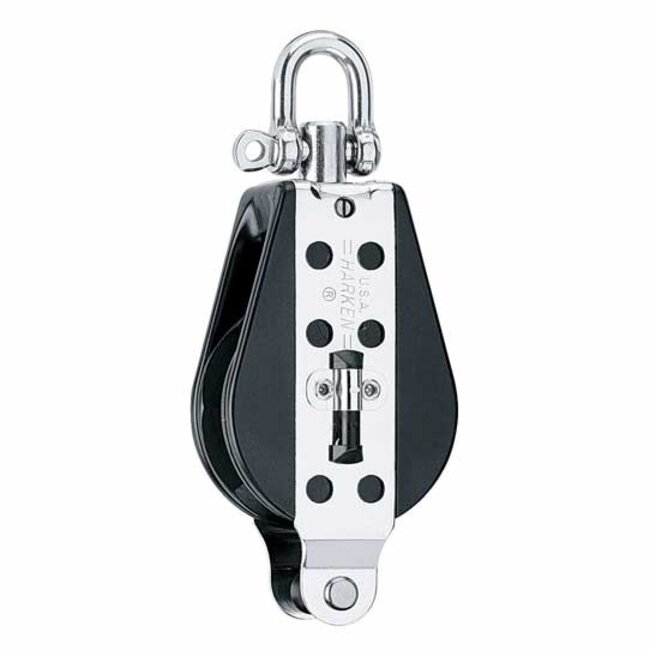

Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
Delrin® ball bearings, sheave, and sideplates are UV stabilized with carbon black for maximum protection. A stainless steel sidestrap wraps across the block head for increased strength and safety.
The wide-diameter 3.00 in (76 mm) ball bearing sheave accepts 9/16 in (14 mm) line. High-load Midrange blocks use Torlon® ball bearings.
Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates. Torlon® is a registered trademark of Solvay Advanced Polymers.
- Sheave Ø 76 mm | 3 in
- Length 184 mm | 7-1/8 in
- Weight 425 g | 15 oz
- Shackle pin Ø 8 mm | 5/16 in
- Maximum line Ø 14 mm | 9/16 in
- Maximum working load 816 kg | 1800 lb
- Breaking load 2268 kg | 5000 lb
- Clockwise Rotation
