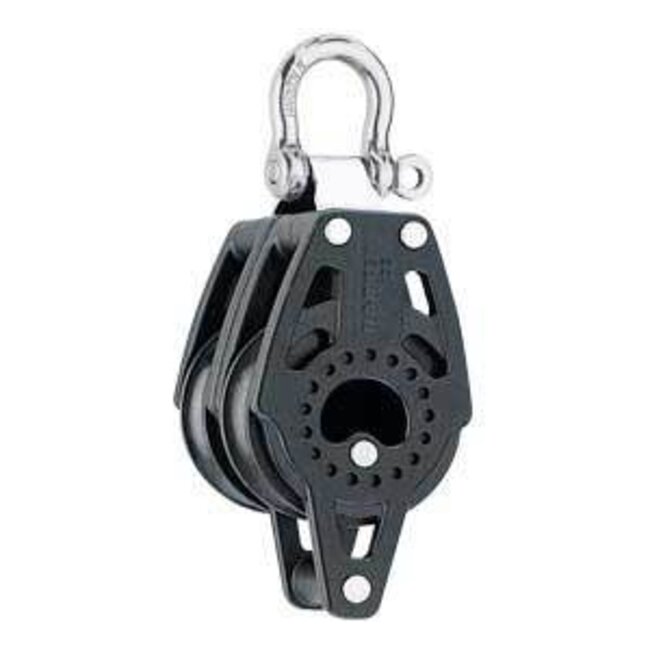

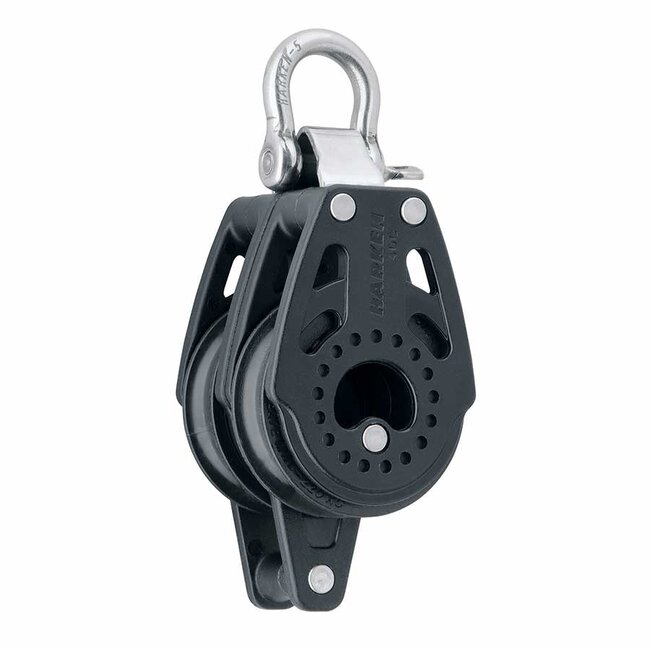

Harken 40mm Carbo Double Block with Becket and Fixed Head

40mm Carbo Blocks

Carbo AirBlocks® are 60% stronger and 30% lighter than Harken's Classic blocks.

The nylon-resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Sheaves spin on high-load ball bearings with fitted races for low-friction operation. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.

Use 40 mm Carbo for jib and mainsheet systems on high-performance dinghies and for loaded control lines on small keelboats.

Use for:

• Main/jib sheets
• Mainsheet fine-tune
• Control lines
• Vangs
• Cunninghams
• Outhauls

Specifications:

• Sheave Ø 40 mm
• Sheave Ø 1 9/16 in
• Length 106 mm
• Length 4-3/16 in
• Weight 84 g
• Weight 2.9 oz
• Shackle pin Ø 5 mm
• Shackle pin Ø 3/16 in
• Maximum line Ø 10 mm
• Maximum line Ø 3/8 in
• Maximum working load 440 kg
• Maximum working load 970 lb
• Breaking load 1080 kg
• Breaking load 2380 lb
