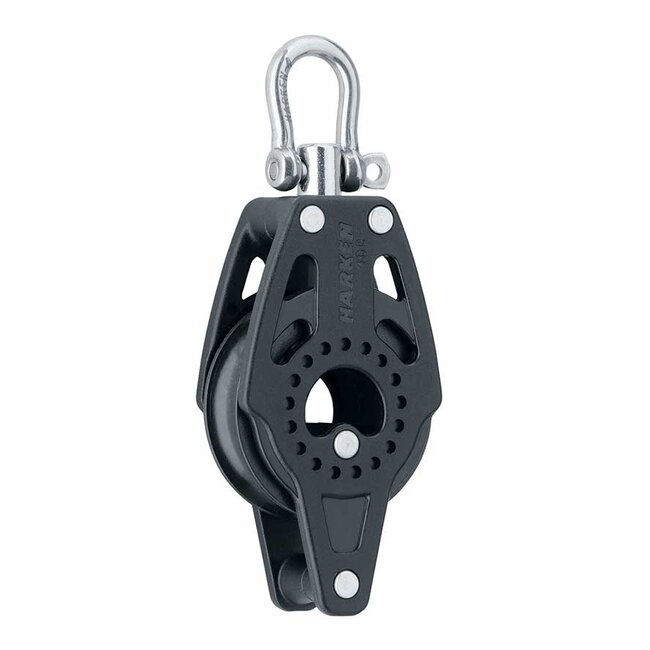

40mm Carbo Blocks

Carbo AirBlocks® are 60% stronger and 30% lighter than Harken's Classic blocks.

The nylon-resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Sheaves spin on high-load ball bearings with fitted races for low-friction operation. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.

Use 40 mm Carbo for jib and mainsheet systems on high-performance dinghies and for loaded control lines on small keelboats.

Use for:

• Main/jib sheets
• Mainsheet fine-tune
• Control lines
• Vangs
• Cunninghams
• Outhauls

Specifications:

• Sheave Ø 40 mm | 1-9/16 in
• Length 102 mm | 4 in
• Weight 48 g | 1.7 oz
• Shackle pin Ø 4 mm | 5/32 in
• Maximum line Ø 10 mm | 3/8 in
• Maximum working load 220 kg | 485 lb
• Breaking load 735 kg | 1620 lb
