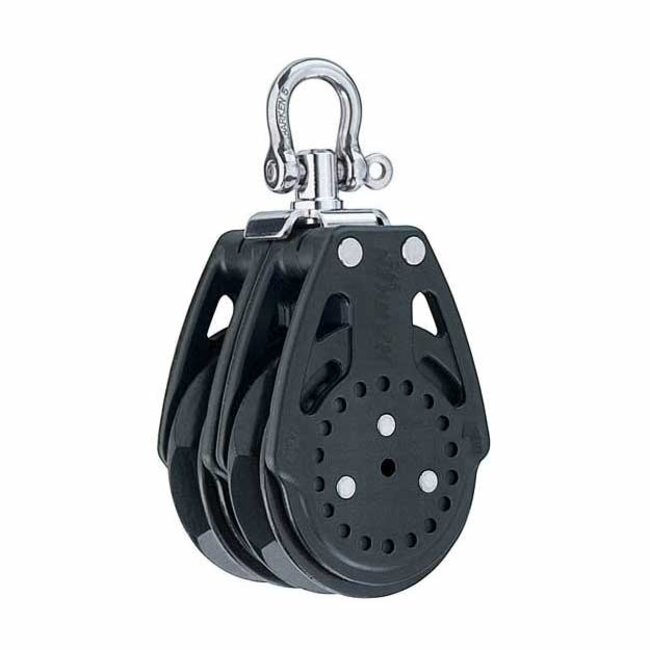

57mm Carbo Ratchamatic Double Block

Product description

57mm Ratchmatic Carbo Blocks

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless. Unloaded main and jib sheets run out freely during mark roundings and asymmetrical spinnakers free instantly during jibes.

Use the 2634 with a 402 or 403 swivel arm for a versatile two-speed mainsheet system

Ratchet engagement may be adjusted to a higher or lower load according to strength and sailing style. The Ratchamatic® cheek block mounts on either port or starboard. The holding power of the 57 mm is as high as 10:1. The 75 mm is up to 15:1.

For the ultimate system, mount a Ratchamatic® on the boom above a cockpit-mounted switchable ratchet to allow the mainsheet to run freely in light air and to double holding power in heavy air.

Use for:

• Main/Jib Sheets
• Asymmetric spinnakers

Specifications:

• Sheave Ø 57 mm | 2 1/4 in
• Length 116 mm | 4-9/16 in
• Weight 204 g | 7.2 oz
• Maximum line Ø 10 mm | 3/8 in
• Shackle pin Ø 6 mm | 1/4 in
• Maximum working load 340 kg | 750 lb
• Breaking load 851 kg | 1875 lb
• Holding Power with 180° wrap with 50lb (23kg) 10:1
