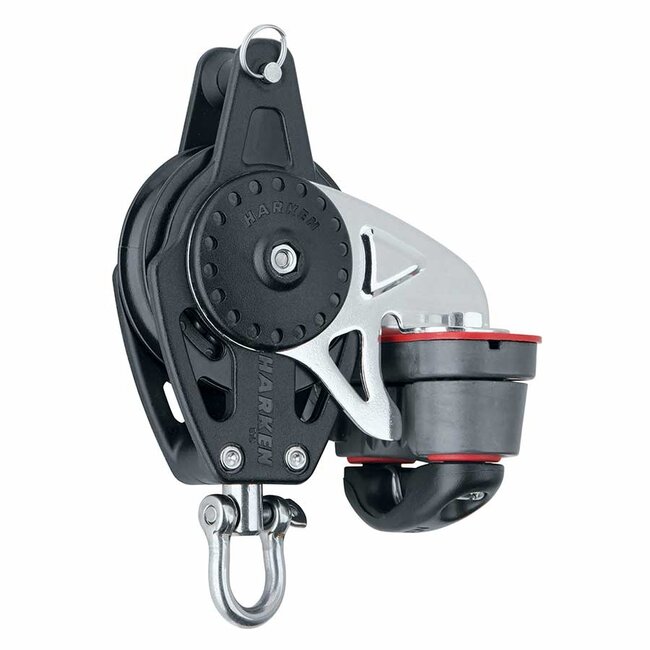

57mm Carbo Blocks
The high-load 57 mm Carbo has a broad working range. Use for main and jib sheets on centerboard and keelboats like Lightnings, Dragons, Solings, and J/24s, and for mainsheet systems on catamarans.
Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting.
- Main/jib sheets
- Mainsheet fine-tune
- Control lines
- Sheave Ø 57 mm | 2-1/4 in
- Length 132 mm | 5-3/16 in
- Weight 442 g | 15.6 oz
- Shackle pin Ø 5 mm | 3/16 in
- Maximum line Ø 10 mm | 3/8 in
- Maximum working load 272 kg | 600 lb
- Breaking load 680 kg | 1500 lb
Note Maximum Working Load and Breaking Load Based On Cam Cleat Strength
