Ratchet Carbo Blocks
Carbo Ratchet Blocks allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are hardcoat anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.
57mm and 75mmm Carbo Ratchet Blocks
The 57 mm and 75 mm switchable ratchets provide precise on/off control with accessible, easy-to-operate on/off switches on both sides of the block.
For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic® directly above for double holding power in heavy air and a free-running mainsheet when it’s light. The 75 mm provides up to 15:1 holding power; the 57 mm 10:1.
- Main/jib/spinnaker sheets
- Mainsheet fine-tune
- Traveler controls
- Genoa leads
- Sheave Ø 75 mm | 2-15/16 in
- Length 165 mm | 6-1/2 in
- Weight 248 g | 8.75 oz
- Shackle pin Ø 6 mm | 1/4 in
- Maximum line Ø 12 mm | 7/16 in
- Maximum working load 341 kg | 750 lb
- Breaking load 1361 kg | 3000 lb

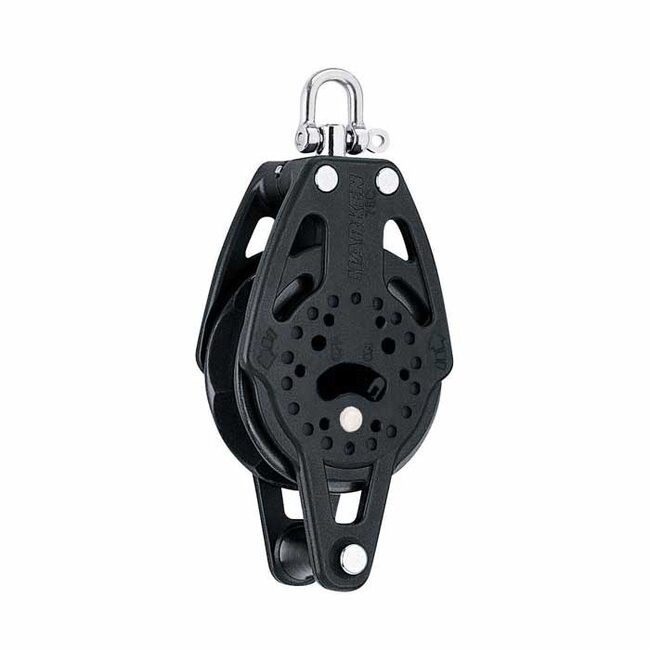

75mm Carbo Ratchet Block with Becket
