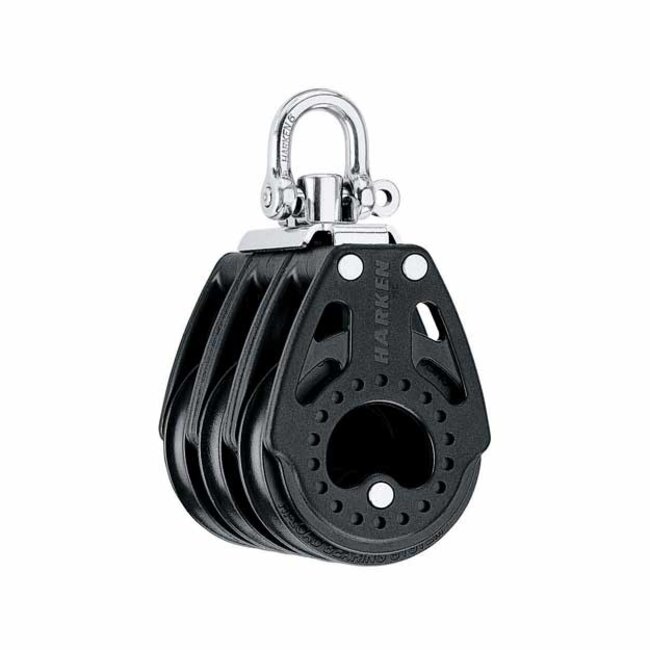

75mm Carbo Blocks
The 75 mm Carbo has a safe working load of 1200 lbs (500 kg). It releases easily under load and is perfect for mainsheet systems on sport boats like the Melges 24, J/105, and Henderson 30.
Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting.
Use for:
- Main/jib sheets
- Mainsheet fine-tune
- Control lines
- Vangs
- Cunninghams
- Outhauls
Specifications:
- Sheave Ø 75 mm | 2-15/16 in
- Length 152 mm |Â 6 in
- Weight 580 g |Â 20.5 oz
- Shackle pin Ø 8 mm | 5/16 in
- Maximum line Ø 14 mm | 9/16 in
- Maximum working load 1650 kg |Â 3639 lb
- Breaking load 4535 kg |Â 10000 lb
