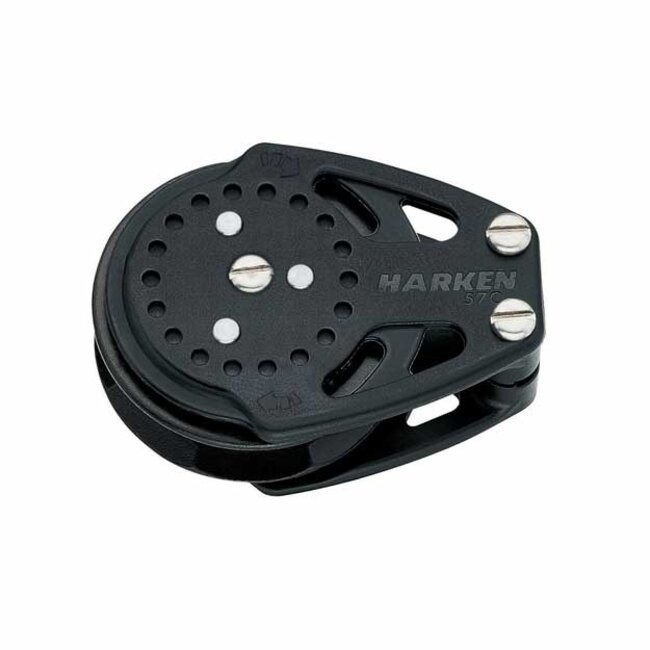

75mm Carbo Ratchmatic Cheek Block

Product description

75mm Ratchmatic Carbo Blocks

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless. Unloaded main and jib sheets run out freely during mark roundings and asymmetrical spinnakers free instantly during jibes.

Use the 2634 with a 402 or 403 swivel arm for a versatile two-speed mainsheet system

Ratchet engagement may be adjusted to a higher or lower load according to strength and sailing style. The Ratchamatic® cheek block mounts on either port or starboard. The holding power of the 57 mm is as high as 10:1. The 75 mm is up to 15:1.

For the ultimate system, mount a Ratchamatic® on the boom above a cockpit-mounted switchable ratchet to allow the mainsheet to run freely in light air and to double holding power in heavy air.

Use for:

• Main/Jib Sheets
• Asymmetric spinnakers

Specifications:

• Sheave Ø 75 mm | 2-15/16 in
• Length 103 mm | 4-1/16 in
• Weight 184 g | 6.5 oz
• Maximum line Ø 12 mm | 7/16 in
• Fasteners M5 mm
• Maximum working load 341 kg | 750 lb
• Breaking load 1361 kg | 3000 lb
• Holding power with 180º wrap 50 lb (23 kg) 15:1

Note Includes Fasteners and Mounting Pad
