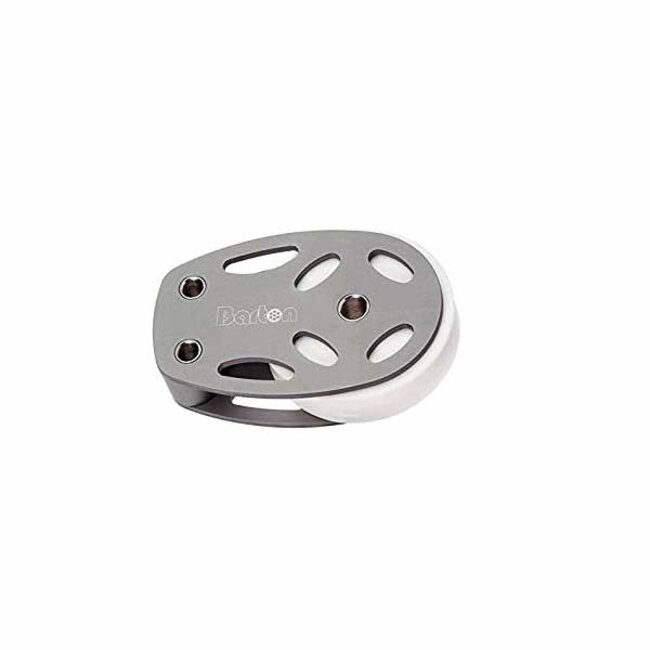

Barton Foot Block 85mm

    Barton Marine Barton Foot Block 85mm


    Product description

    Manufactured from marine grade aluminium and grey anodised for high UV stability and durability.

    • Sheaves are precision turned from solid ‘Ertalyte’ bar with a profile that is kind to modern ropes.
    • Running on a large diameter centre bearing for easy running under high loads.
    • Fitted with a stainless steel bow shackle to allow for snag-free operation.
    • Hollow stainless steel rivets allow for through-bolt fastening, giving added strength.
    • Through-bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note; stacking blocks will reduce working loads.
    • Fastenings of the minimum diameter suggested should be used to gain full load capability.
    • Ensure that suitable mounting pads are used under deck.


    • Sheave Ø 85 mm
    • Sheave Width 21 mm
    • Max Line Ø 18 mm
    • Break Load 3000 kg
    • Safe Working Load 1500 kg
    • Length 132 mm
    • Weight 427 g
