Product description

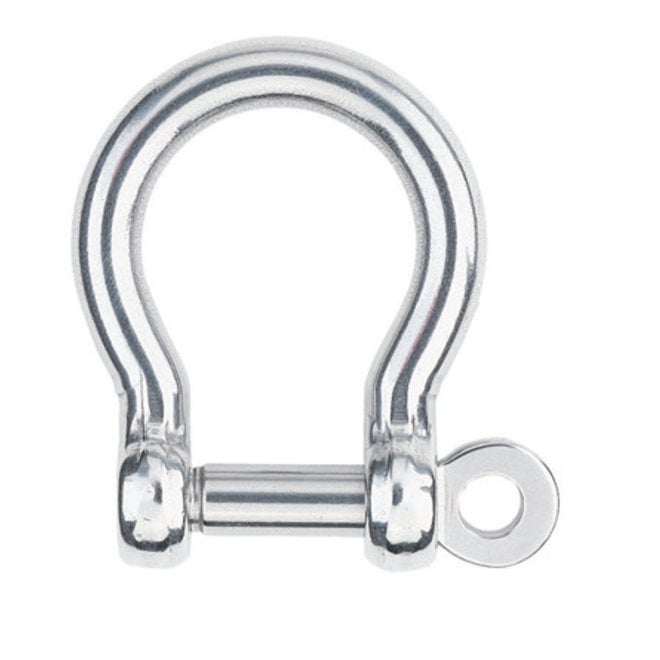

Harken 6mm Forged Bow Shackle

Forged Shackles

The stainless steel shackles we use on Harken® blocks are available separately. Harken forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. The breaking strengths shown are derived from weights supported by 80% of the length of the shackle pin, similar to the length spanned by an appropriate block's headpost.

Bow Shackles

Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Specifications:

• Shackle pin Ø 6 mm
• Shackle pin Ø 1/4 in
• Weight 29.5 g
• Weight 1.04 oz
• Inside Height 27 mm
• Inside Height 1-1/16 in
• Inside Width 14 mm
• Inside width 9/16 in
• Inside Bow Width 19 mm
• Inside Bow Width 3/4 in
• Maximum working load 750 kg
• Maximum working load 1650 lb
• Breaking load 1500 kg
• Breaking load 3300 lb
