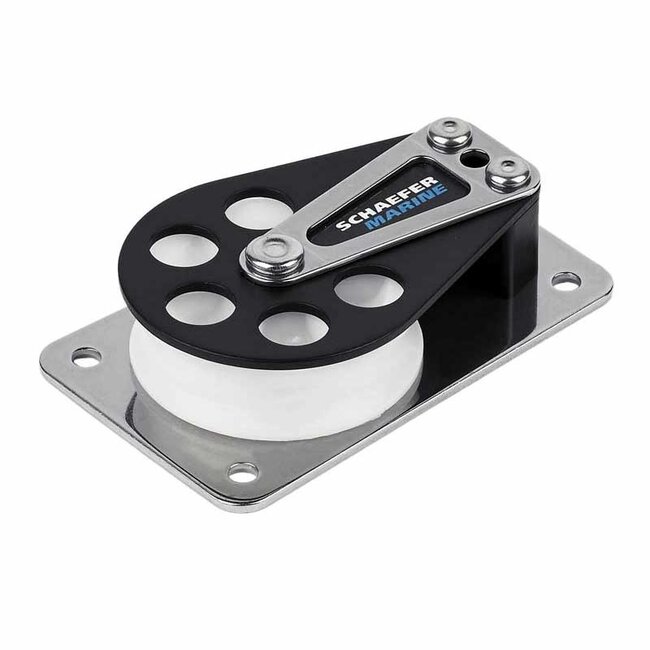

Product description
5 Series blocks offer small to medium sized cruising and racing yachts an extremely high strength/weight ratio resulting in a highly refined and reliable block. Our versatile universal head design has a three way built in locking feature and accepts Schaefer "universal" adapters for custom mounting.
Aluminum cheeks and plain bearing sheaves. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
- Sheave Ø 2" | 51 mm
- Max Line Ø 7/16" | 11 mm
- Length 3-5/8" | 92 mm
- Width 2-7/32" | 57 mm
- Height 7/8" | 22 mm
- Fasteners #10 RH | M5
- Center to Center 3" | 76 mm
- SWL 1750 lbs. | 795 kg
- Weight 5.9 oz. | 167g
