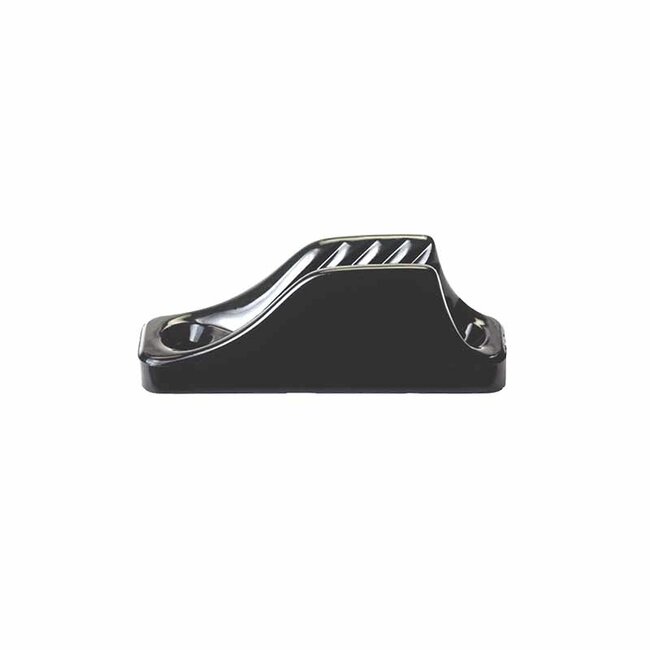

With the CL209 the rope drops down into the teeth to give a quick and positive lock that is easy to release.
The cleat is maufactured from UV resistant plastic, making it cost effective and ideal for holding rope in a marine environment. Its simple design has lead to it being fitted on dinghies and kayak.
| Rope Diameter | 4 - 8mm | 5/32 - 5/16" |
|---|---|---|
| Hole Centres | 54mm | 2 1/8" |
| Length | 73mm | 2 3/4" |
| Width | 19mm | 3/4" |
| Height | 26mm | 1 1/32 |
| Bolt Size | M5 | No 10-24. 3/16" |
| Screw Size | 4.5 | n/a |
| Weight | 20gms | 0.7oz |
