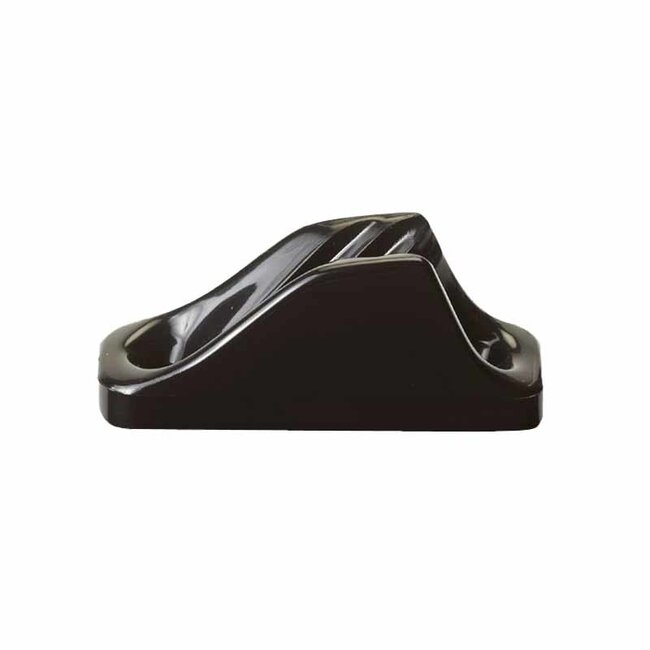

Clamcleat® CL204 is an elegant design in black or white nylon. The rope drops down into the teeth. It can be fitted to all flat and curved surfaces, using rivets, countersunk (flathead) screws or bolts. CL204 can also be sewn, riveted or bolted onto webbing or fabric.Â
Uses include control lines for dinghies and kayaks.
| Rope Diameter | 3 - 6mm | 1/8 - 1/4" |
|---|---|---|
| Hole Centres | 36mm | 1 7/16" |
| Length | 52mm | 2" |
| Width | 17mm | 5/8" |
| Height | 21mm | 13/16 |
| Bolt Size | M4 | #8. 5/32" |
| Screw Size | 4.2 | No 8 |
| Weight | 9gms | 0.3oz |
