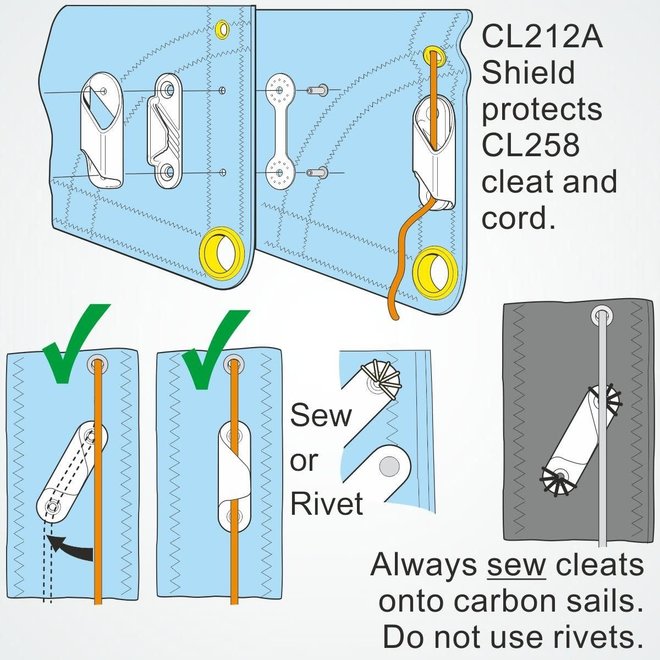

The tooth design allows a quick, positive lock that is easy to release, add this to its low profile and ability to hold high loads, it makes an ideal cleat for adjusting leech lines on larger sails. Use a backplate when riveting a cleat onto fabric to prevent the rivet pulling through.

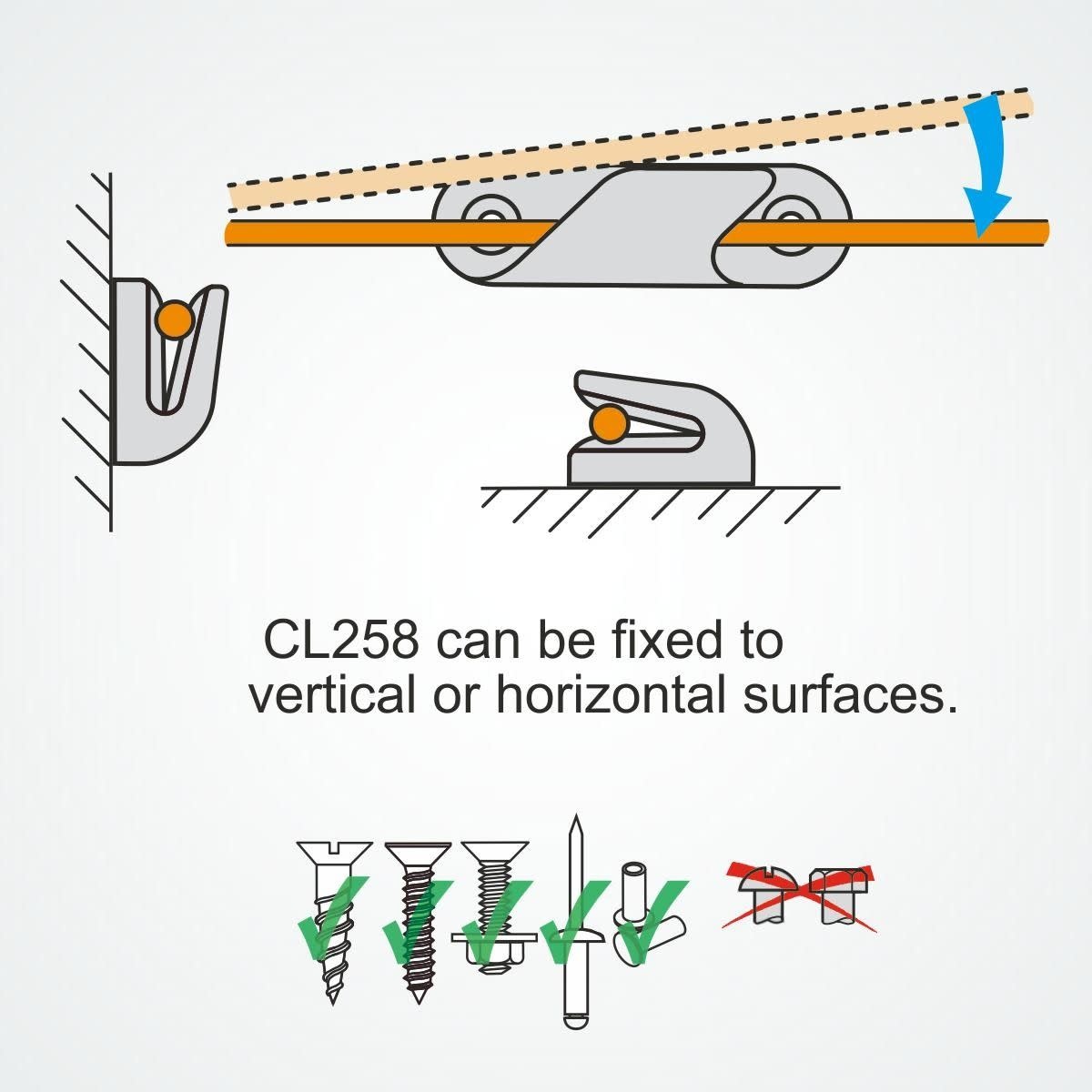

It can be mounted in two positions and can be sewn or riveted to the sail. Manufactured from aluminium for light weight and durable performance with a silver stove enamel finish for a cost effective, high quality coating.
Also available port side, CL259.
| Technical Details | Metric | Imperial |
|---|---|---|
| Rope Diameter | 3 - 6mm | 1/8 - 1/4" |
| Material | Aluminium | Aluminium |
| Hole Centres | 49mm | 1 15/16" |
| Length | 70mm | 2 3/4" |
| Width | 21mm | 13/16" |
| Height | 14mm | 9/16 |
| Bolt Size | M4 | #8-32. 5/32" |
| Screw Size | 4.2mm | No 8 |
| Weight | 19gms | 0.7oz |
