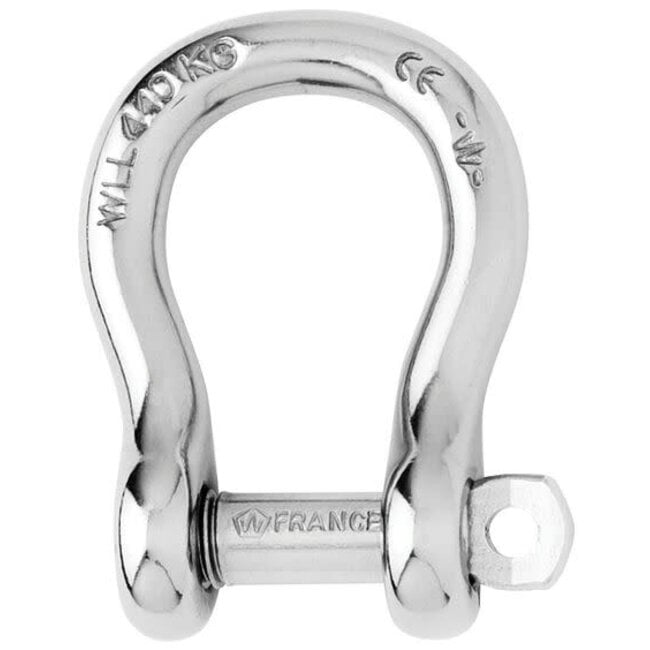

Captive pin bow shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety

• Materials316 stainless steel grade
• Working load (kg)1110
• WLL (kg)740
• Breaking load (kg)3700
• Weight (g)75

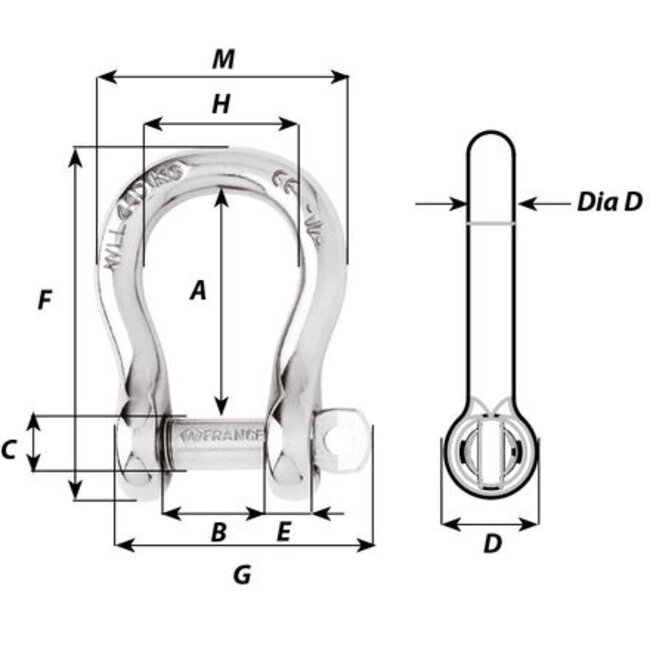

• A (mm)37
• B (mm)16
• C (mm)9
• D (mm)18
• D diameter (mm)8
• E (mm)8
• F (mm)56
• G (mm)41
• H (mm)25
• M (mm)42
