Product description

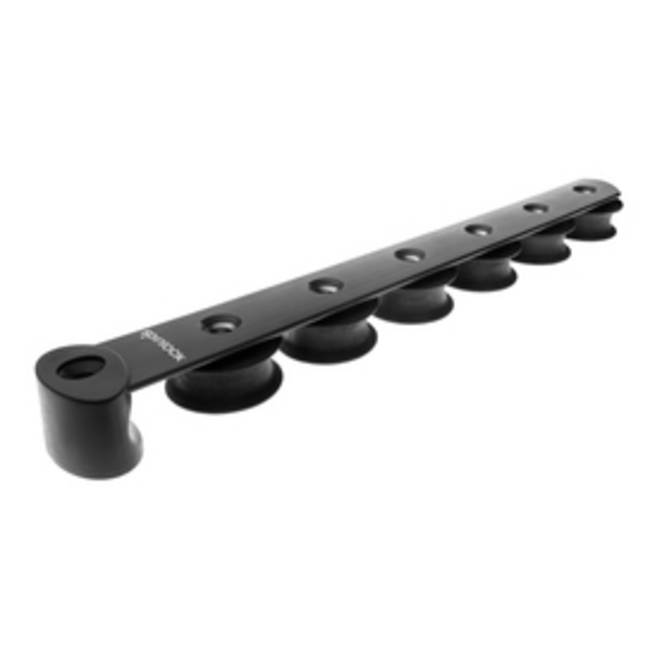

Spinlock 6-Sheave 38mm Asymmetric Deck Organizer

T-Series Organisers lead multiple lines back from the mast to banks of powerclutches

• Minimal overall length
• Efficient bearings surface reduces winch effort and increases halyard life
• Integral end fairings for safe side loading
• Asymmetric version reduces deck footprint and saves weight
• Can ‘stack’ for limited deck area or adding extra capacity.
• Vari-camber feature: Designed to follow the curve of the deck when fitted

Specifications:

• • Sheave Diameter/Type: 38mm (1 1/2") composite
  • SWL per sheave: 600kg (1320lbs)
  • Total SWL per unit: No of sheaves x 300kg (660lbs)
  • Line Diameter: Up to 12mm (1/2")
