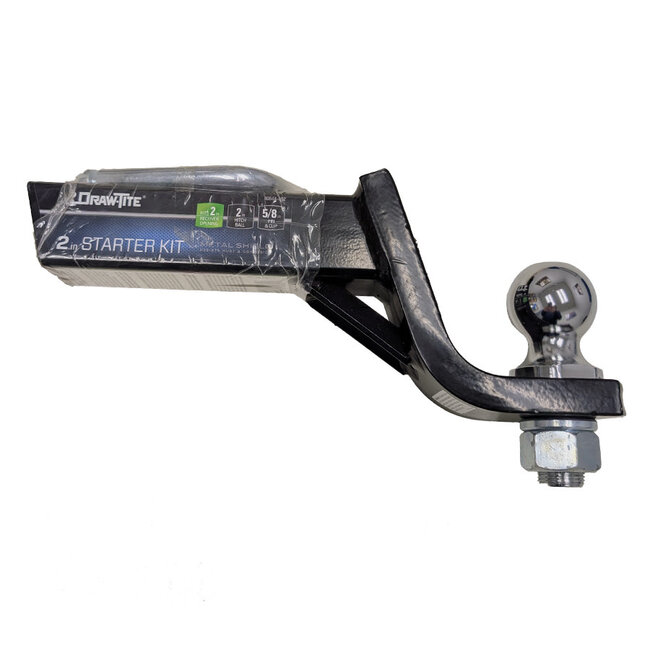

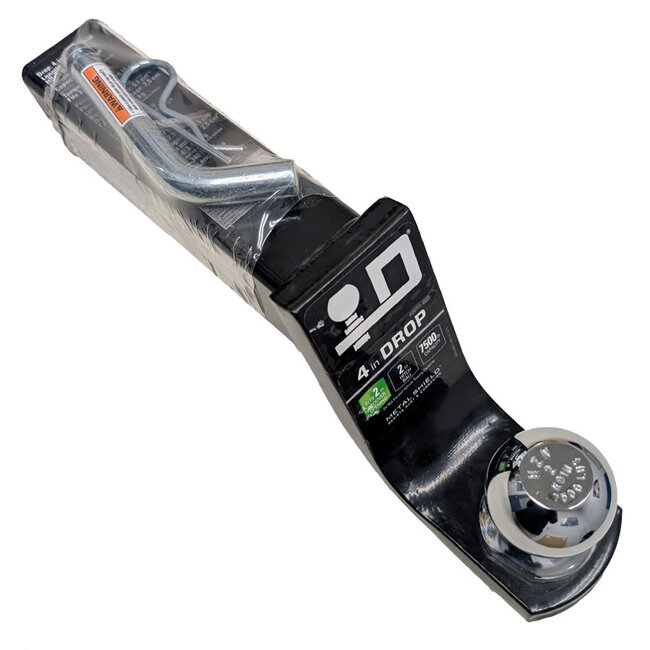

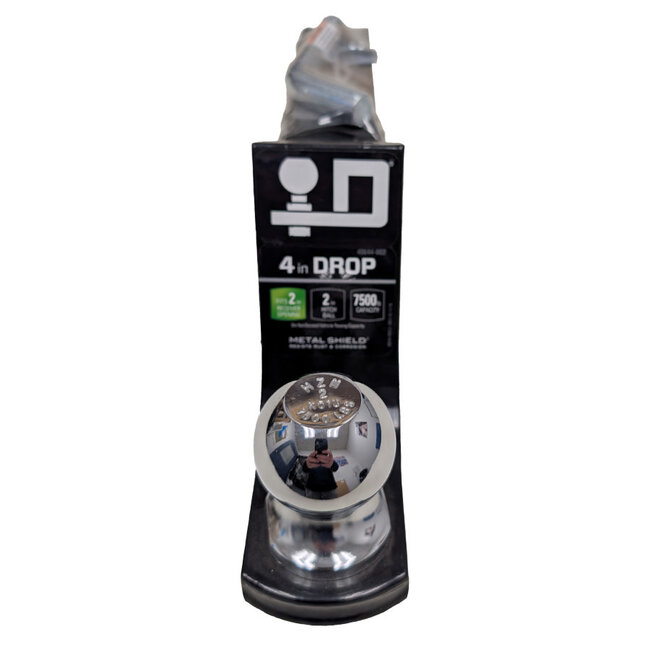

The Draw-Tite trailer hitch ball mount starter kit is the perfect purchase for anyone who is new to towing and not sure what to get. Draw-Tite starter kits come complete with everything you need to set up your trailer hitch and tow safely. Each starter kit includes a ball mount with a pre-torqued hitch ball and Interlock technology to keep it securely in place on your ball mount.
Draw-Tite starter kits also include either a pin and clip or a lock to keep the shank of the ball mount securely connected to your vehicle’s receiver hitch. Each Draw-Tite ball mount is made from solid, all-welded steel and has a Black finish and is specifically designed to work with 2 in. hitch receivers. The drop needed for each vehicle and trailer combination varies, so be sure to pair your vehicle and trailer correctly to achieve a level and safe towing setup.
This Draw-Tite starter kit fits a 2 in. receiver hitch and has a 4 in. drop. It has a maximum towing capacity of 7,500 lbs. and includes a 2 in. Trailer Ball and Receiver Lock Brought to you Draw-Tite, maker of North America’s Favorite Hitch!
Â
| Brand: | DRAW-TITE |
| Warranty: | Limited Lifetime Warranty |
| Capacity: | 7,500 lbs. |
| Gross Tongue Weight: | 750 lbs. |
| Hitch Class: | IV |
| Drop: | 4 in. |
| Rise: | 2.75 in. |
| Receiver Size: | 2 in. |
| Rise Capacity: | 7,500 lbs. |
| Rise Tongue Weight: | 750 lbs. |
| Adjustable: | No |
| Ball Included: | Yes |
| Ball Diameter: | 2 in. |
| Shank Length: | 9 in. |
| Ball Finish: | Chrome |
| Heat Hardened: | No |
| Ball Hole Diameter: | 1 in. |
| Material: | Steel |
| Ball Shank Length: | 1.25 in. |
| Finish: | Black Powder Coat |
| Ball Shank Diameter: | 1 in. |
| Hitch Lock Included: | No |
| Hitch Pin Included: | Yes |
| Cotter Pin Included: | Yes |
| Pin Diameter: | 0.656 in. |
| Color: | Black |
| Ball Material: | Steel |
| Ball Color: | Silver |
| Hex Nut Included: | Yes |
| Lock Washer Included: | Yes |
| Hitch Pin Span: | 3 in. |
| Hitch Pin Material: | Steel |
| Hitch Pin Hole Diameter: | 0.625 in. |
