Ratchet Carbo Blocks

Carbo Ratchet Blocks allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

Nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are hardcoat anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.

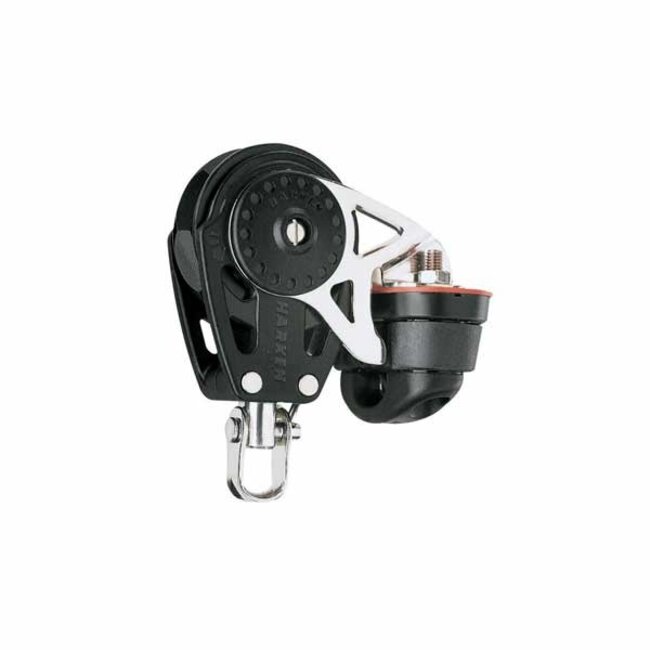

40mm Carbo Ratchet Blocks

The 40 mm ratchets are ideal for jib sheets and spinnakers where size and weight are critical. The 2608, 2609, and 2614 have on/off switches; other 40 mm ratchets are always in ratchet mode.

Use for:

• Main/jib/spinnaker sheets
• Mainsheet fine-tune
• Traveler controls
• Genoa leads
• Foreguy
• Vangs

Specifications:

• Sheave Ø 40 mm | 1-9/16 in
• Length 86 mm | 3-3/8 in
• Weight 129 g | 4.6 oz
• Shackle pin Ø 4 mm | 5/32 in
• Maximum line Ø 6 mm | 3/16 in
• Maximum working load 68 kg | 150 lb
• Breaking load 136 kg | 300 lb

Note Maximum Working Load and Breaking Load Based On Cam Cleat Strength
