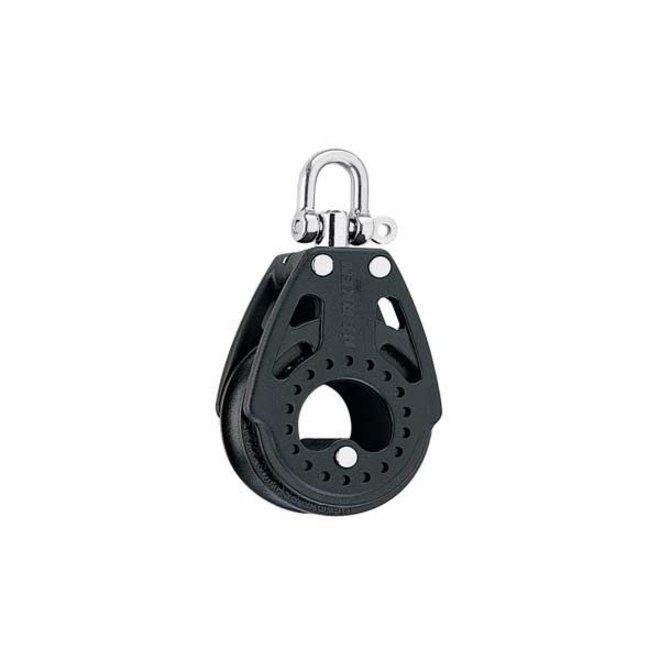

75mm Carbo Blocks
The 75 mm Carbo has a safe working load of 1200 lbs (500 kg). It releases easily under load and is perfect for mainsheet systems on sport boats like the Melges 24, J/105, and Henderson 30.
Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting.
Use for:
- Main/jib sheets
- Mainsheet fine-tune
- Control lines
- Vangs
- Cunninghams
- Outhauls
Specifications:
- Sheave Ø 75 mm | 2-15/16 in
- Length 137 mm | 5-3/8 in
- Weight 195 g |Â 6.9 oz
- Shackle pin Ø 6 mm | 1/4 in
- Maximum line Ø 14 mm | 9/16 in
- Maximum working load 550 kg |Â 1213 lb
- Breaking load 1650 kg |Â 3638 lb
