Product description

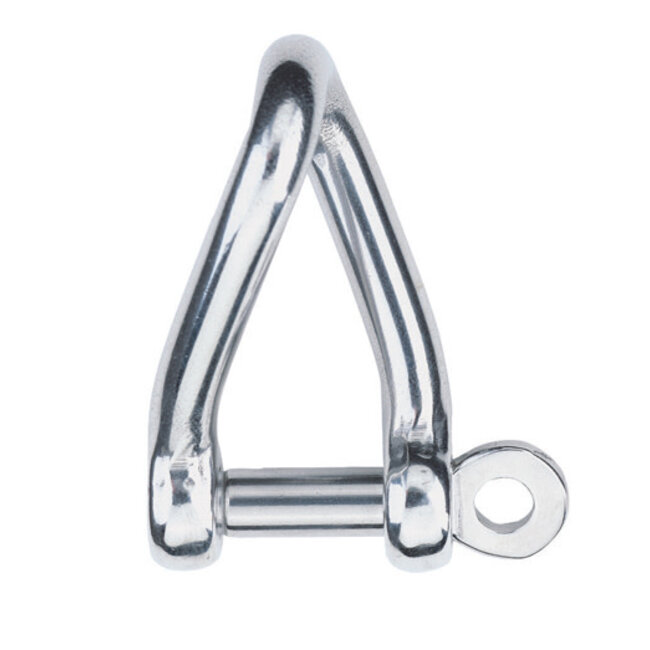

Harken 8mm Forged Twist Shackle

Forged Shackles

The stainless steel shackles we use on Harken® blocks are available separately. Harken forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. The breaking strengths shown are derived from weights supported by 80% of the length of the shackle pin, similar to the length spanned by an appropriate block's headpost.

Twist Shackles

Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.

Specifications:

• Shackle pin Ø 8 mm
• Shackle pin Ø 5/16 in
• Weight 52 g
• Weight 1.84 oz
• Inside Height 41 mm
• Inside Height 1-5/8 in
• Inside Width 17 mm
• Inside width 11/16 in
• Maximum working load 1380 kg
• Maximum working load 3040 lb
• Breaking load 2760 kg
• Breaking load 6080 lb
