Product description

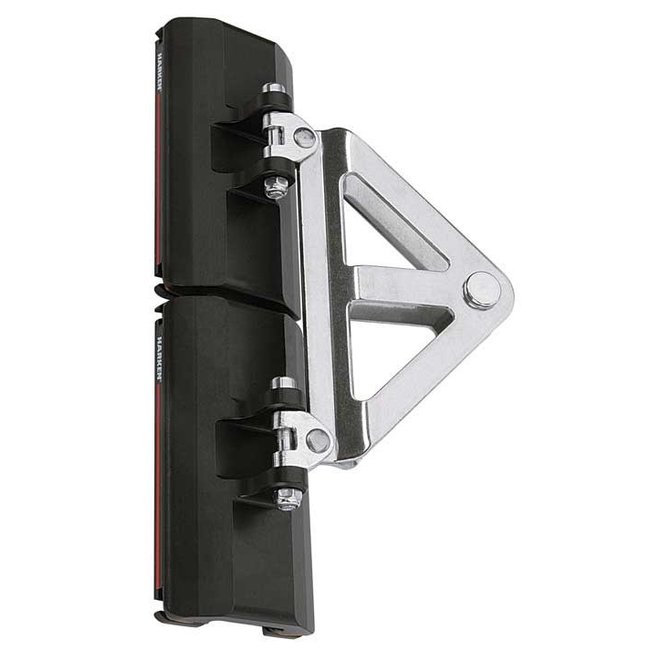

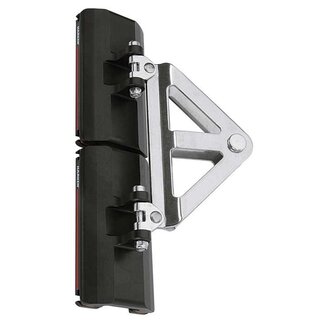

Harken Captive Ball Headboard Car Assembly for System A 22mm Track

22mm System A Battcars

A Harken® Battcar system along with full-length battens helps raise, douse, and reef with ease and acts as extra crew if you’re sailing shorthanded. Battcar systems outperform in-mast or in-boom furling, cost less, and you don’t need to recut your sail.

22 mm A Slug-Mount CB Track

Track is extruded from high-grade 6061-T6 aluminum and hardcoat-anodized for a hard, long-lasting surface. 3807 track mounts to mast using a unique slug system that allows mast-up installation.

Mounting Kits and Endstops

Mounting kit slugs are available for flat or round mast grooves. Order one kit per track section.

Specifications:

• Length 213 mm
• Length 8 3/8 in
• Width 57 mm
• Width 2 1/4 in
• Weight 518 g
• Weight 18 oz
• Maximum headboard thickness 14 mm
• Maximum headboard thickness 9/16 in
• Maximum sail area - monohull 56 m²
• Maximum sail area - monohull 600 ft²
• Maximum sail area - multihull 46 m²
• Maximum sail area - multihull 500 ft²
• Maximum working load 725 kg
• Maximum working load 1600 lb
• Standoff From Mast to Headboard Pin 102 mm
• Standoff From Mast to Headboard Pin 4 in
• Pin ø 5 mm
• Pin ø 3/16 in
