Product description

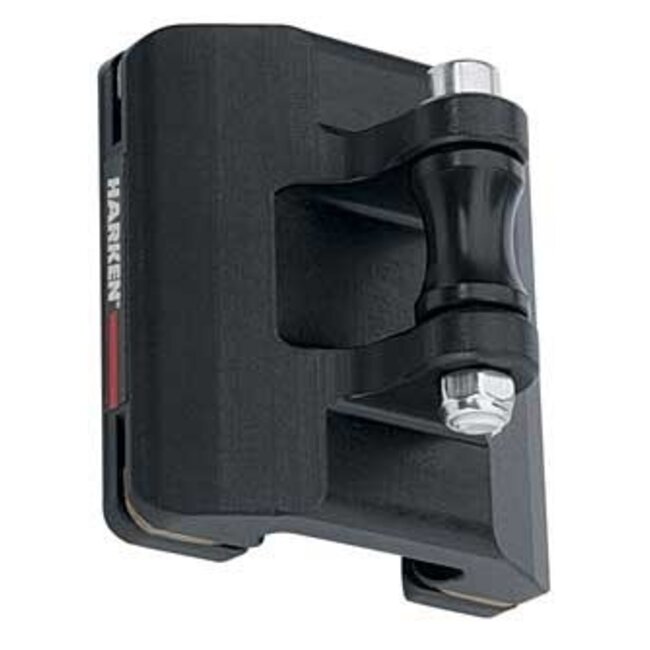

Harken Captive Ball Intermediate Car for System A 22mm Track

22mm System A Battcars

A Harken® Battcar system along with full-length battens helps raise, douse, and reef with ease and acts as extra crew if you’re sailing shorthanded. Battcar systems outperform in-mast or in-boom furling, cost less, and you don’t need to recut your sail.

22mm System A Captive Ball Cars

The one-piece solid aluminum construction is lightweight and strong. Cars are easily removed from the track by freeing the screwpin endstop and sliding them off. Both CB and Slider Battcar systems use the same track. Mix and match sliders and ball bearing cars for optimal performance and cost.

The free-rolling ball bearing cars let you hoist and reef the main quickly on all points of sail. Stainless steel wire guides keep the balls captive when the car is off the track.

22 mm A Slug-Mount CB Track

Track is extruded from high-grade 6061-T6 aluminum and hardcoat-anodized for a hard, long-lasting surface. 3807 track mounts to mast using a unique slug system that allows mast-up installation.

Mounting Kits and Endstops

Mounting kit slugs are available for flat or round mast grooves. Order one kit per track section.

Specifications:

• Length 57 mm
• Length 2 1/4 in
• Width 57 mm
• Width 2 1/4 in
• Weight 109 g
• Weight 4 oz
• Maximum sail area - monohull 56 m²
• Maximum sail area - monohull 600 ft²
• Maximum sail area - multihull 46 m²
• Maximum sail area - multihull 500 ft²
