Product description

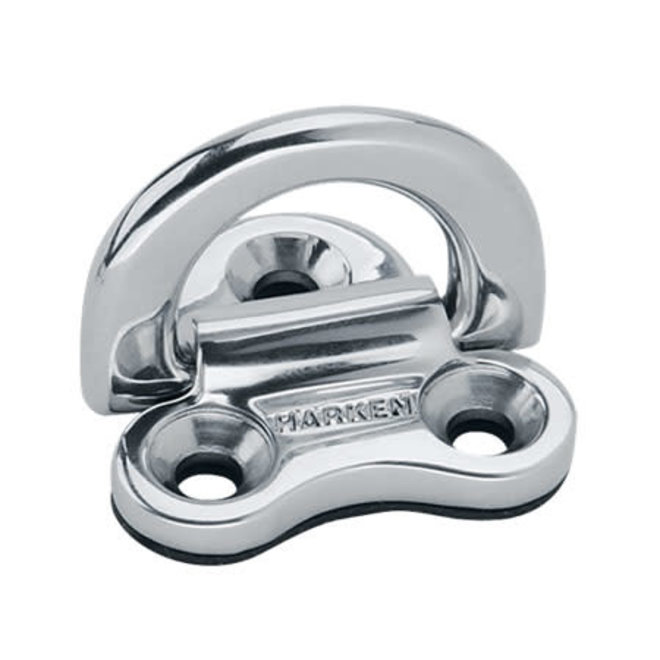

Harken Folding Padeye Large

Folding padeyes keep your deck and passageways clear. They’re ready when you need to attach a snatch block or fender, but fold safely out of the way when you don’t.

Bolt-down bases and D-rings are 316 stainless steel. A vulcanized thermoplastic pad prevents rattling and holds the D-ring in position.

Specifications:

• A: 47 mm | 1-7/8”
• B: 42.25 mm | 1-5/8”
• C: 28 mm | 1-1/8”
• D: 23 mm | 15/16”
• E: 14.9 mm | 19/32”
• F: 28 mm | 1-1/8”
• Weight: 78 g | 2.75 oz
• Maximum working load: 1400 kg | 3080 lb
• Breaking load: 2800 kg | 6160 lb
• Fasteners: 6 mm FH | 1/4” FH
