Product description

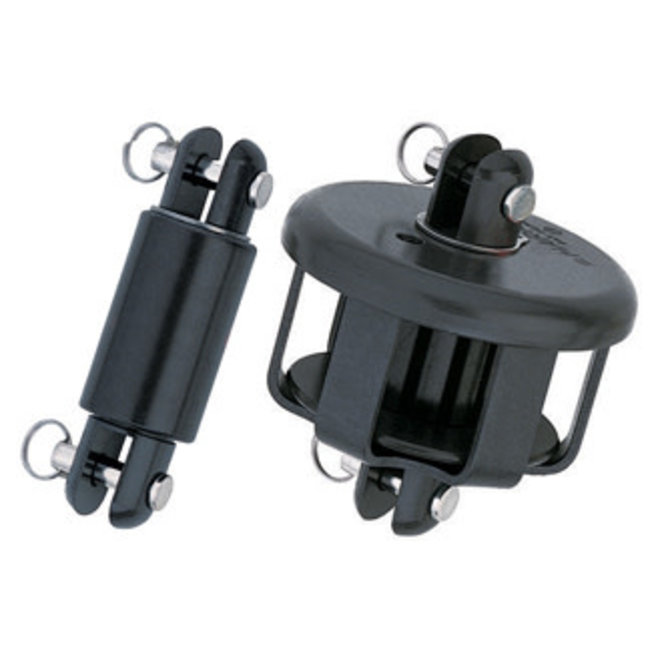

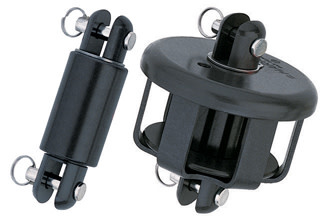

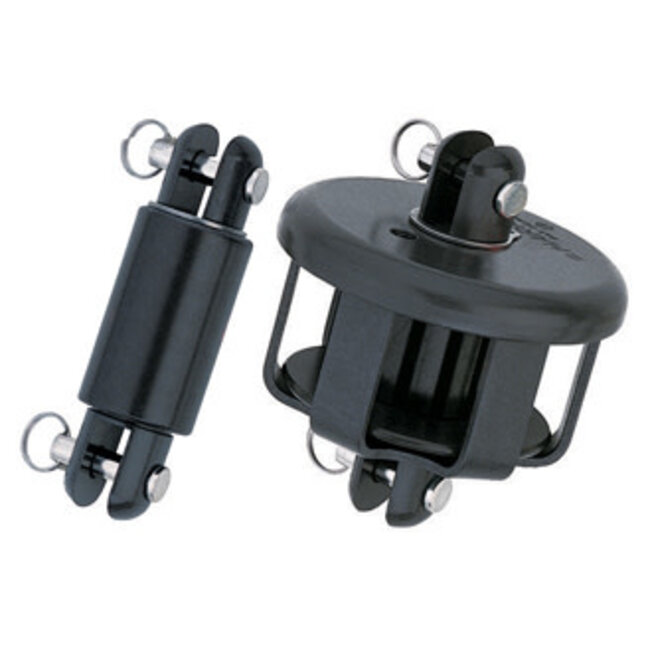

Low-Load Furling System — 3 mm Luff Wire
Harken® Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit. An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.
Specifications:
- Pin-to-pin length: 64 mm | 2 1/2 in
- Drum Ø: 73 mm | 2 7/8 in
- Maximum line Ø: 4 mm | 5/32 in
- Jaw width: 8 mm | 5/16 in
- Maximum luff wire Ø: 3 mm | 1/8 in
- Clevis pin Ø: 6.4 mm | 1/4 in
- Weight: 215 g | 7.6 oz
- Maximum working load: 227 kg | 500 lb
- Boat length - monohull: Under 4.9 m | Under 16 ft
- Includes upper swivel162
- Includes drum163
- Footnote: Includes drum and upper swivel. Does not include hoistable swivel
