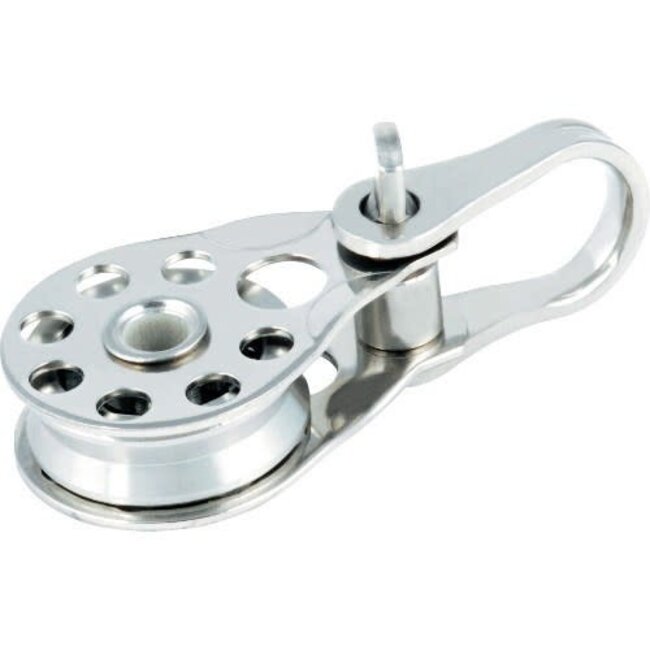

High Tension Single Block Flared Cheek

Product description

Specifically intended for use where wire lines are subjected to low rotational high loads. The range uses stainless-steel side cheeks to give maximum strength in the smallest form possible and a single row of spaced stainless-steel ball bearings in the sheave. Available with different accessories including hooks, beckets, swivels and shackles giving a whole range of choice to suit the application.

• Sheave Ø 25 mm
• Break Load 750 kg
• Max Line Ø 2-7 mm
• Length 41 mm
• Shackle Pin Ø 5 mm
• Weight 44 g
