Product description

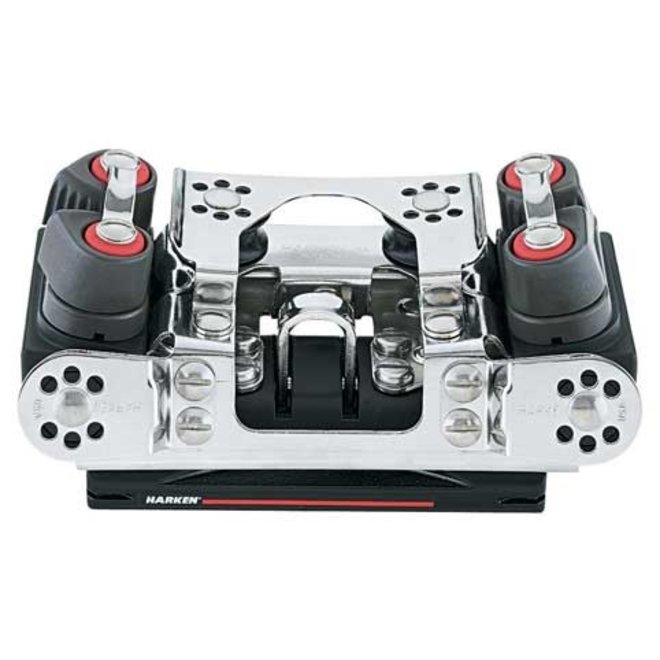

Harken Mid-Range Windward Sheeting Captive Ball Traveler Car for 27mm Track

Windward Sheeting Cars

Race once with the windward sheeting traveler car and you’ll never race without one again. Pull the car above the centerline without releasing the leeward control line. Tack, and the car stays in the same position, ready to be pulled to the new windward side.

27 mm Midrange CB Traveler Cars

Midrange CB traveler cars are built to handle high loads on boats from 27 ft to 34 ft (8 m to 10 m).

The one-piece solid aluminum construction is lightweight and strong. Ball bearings run on machined-aluminum, hardcoat-anodized races for smooth trimming and easing. Stainless steel wire guides keep balls captive when the car is off the track. Shackle/toggle cars have low pivot points to handle nonvertical loads. Purchase car accessories separately to set up a control system.

For a high-performance system, attach Carbo or Black Magic® ball bearing control blocks to stand-up toggle ears, reducing load on the car so bearings don’t bind. Pair with Carbo block end controls for reduced friction and a smooth-running system.

Specifications:

• Length 171 mm
• Length 6 3/4 in
• Width 105 mm
• Width 4 1/8 in
• Weight 990 g
• Weight 35 oz
• Maximum line Ø 10 mm
• Maximum line Ø 3/8 in
• Maximum working load 816 kg
• Maximum working load 1800 lb
• Breaking load 2268 kg
• Breaking load 5000 lb
• Purchase end controls 3:1 - 1631 or 4:1 - 1631
