Midrange Traveler End Controls Double Sheave Pair

    Harken Midrange Traveler End Controls Double Sheave Pair


    Product description

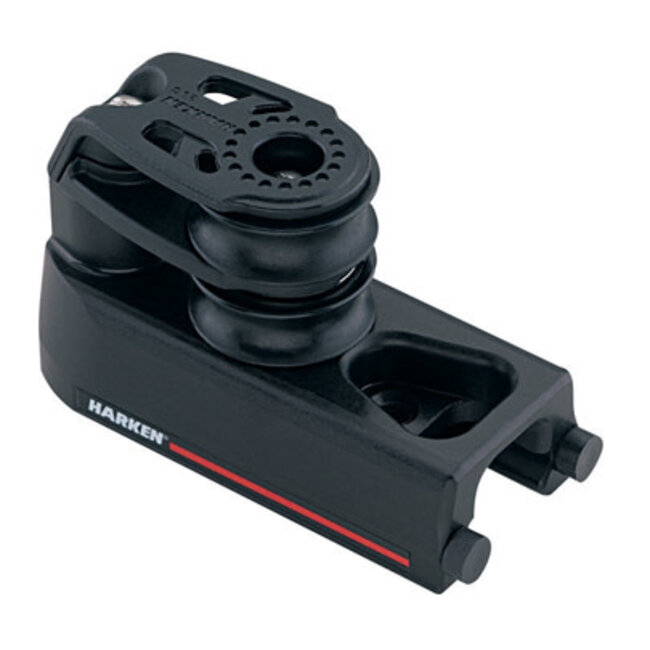

    Harken Mid-Range Double Sheave End Control Set for 27mm Track

    27 mm Midrange Track End Controls

    High-performance end controls allow the installation of 2:1 to 5:1 purchases. Designed for high-performance, free-running systems, Carbo control blocks with Delrin® ball bearings let cars instantly adjust and release under load. Assemblies secure to track, eliminating additional holes. Tough one-piece bases and cam arms are machined from a single piece of aluminum. Compact, low-friction block components combined with Carbo-Cam® cleats keep weight minimal.


    • Sheave Ø 40 mm
    • Sheave Ø 1 9/16 in
    • Length 114 mm
    • Length 4 1/2 in
    • Width 49 mm
    • Width 1 15/16 in
    • Height above track 50 mm
    • Height above track 2 in
    • Weight for pair 730 g
    • Weight for pair 26 oz
    • Maximum line Ø 10 mm
    • Maximum line Ø 3/8 in
    • Maximum working load 318 kg
    • Maximum working load 700 lb
    • Breaking load 794 kg
    • Breaking load 1750 lb
    • Purchase 3:1 / 4:1
    • Fasteners 8 PH mm
    • Note Fasteners included
