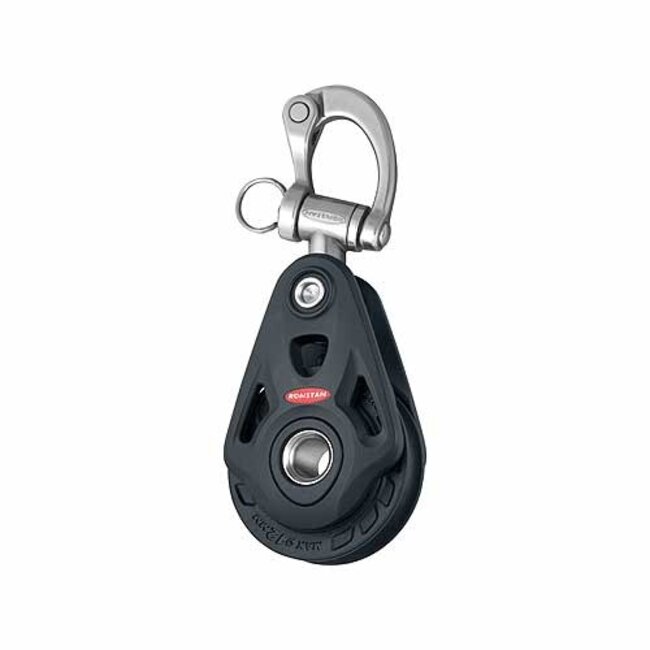

Ronstan Series 60 Core Block with Trunnion Snap Shackle

Product description

Core Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

Universal Bearing

Dynamic and high static load performance

The Ronstan Universal Bearing incorporates our proven 2-stage bearing system

Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.

Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.

Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn’t perfect. Particularly important for cheek blocks.

Alloy cheek plates

Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings.  Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.

FEATURES

• Class leading performance and sleek, contemporary styling
• Excellent dynamic and high static load performance
• Less than half the friction of the nearest competitor
• Trunnion snap shackle allows both 360° rotation and side to side articulation.
• Ideal utility/emergency block
• Suits attachment to toe rail
• Ideal 2:1 halyard block with quick attachment & removal
• 20mm (3/4") snap shackle internal clearance
• Central hub hole can be used as a becket take-off or tie-up point

SPECIFICATIONS

• Sheave Ø: 60 mm | 2-3/8"
• Max Rope Ø: 12 mm | 1/2"
• Max Work Load: 1000 kg | 2200 lb
• Break Load: 2000 kg | 4410 lb
• Weight: 285 g | 6.4 oz
