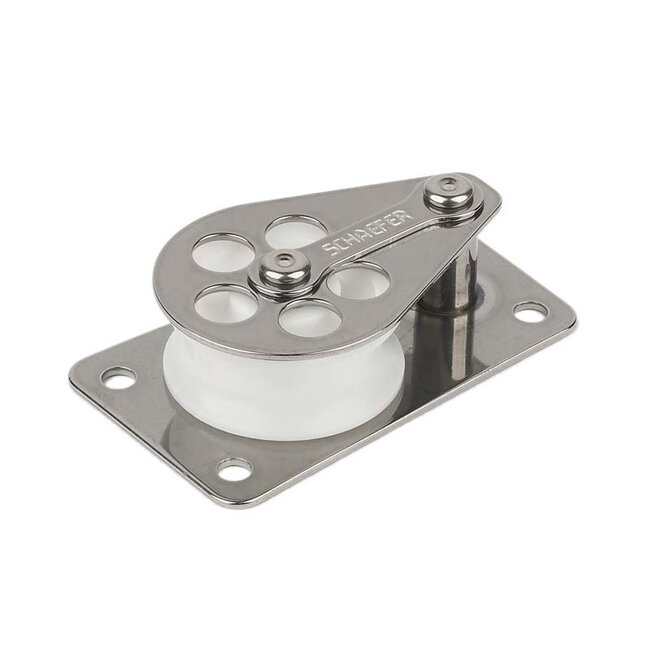

Schaefer Flat Base Cheek Block

Product description

3 Series Cheek Block with Stainless Steel cheek and base. The Delrin sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a large surface area.

Specifications

• Sheave Ø: 1-7/16" | 37 mm
• Max Line Ø: 7/16" | 11 m
• Length: 2-7/8" | 73 mm
• Width: 1-3/4" | 44 mm
• Height: 3/4" | 19 mm
• Fasteners: #10 RH | M5 RH
• Center to Center: 2-3/8" | 60 mm
• SWL: 1000 lbs. | 450 kg
