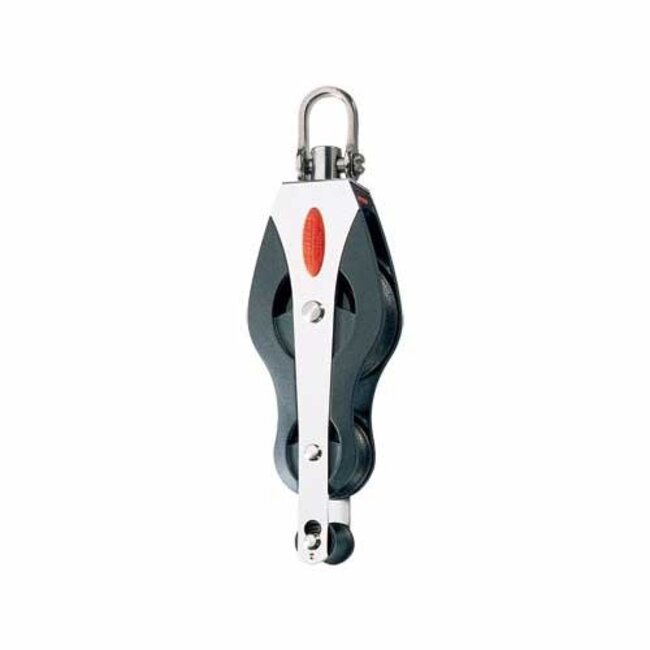

Series 40 Fiddle Block with Becket Ball Bearing

Product description

Sheaves running on Acetal or Torlon^® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.

FEATURES

• Low friction Acetal or Torlon® bearing system
• Lightweight
• Cheek cut-outs for easy bearing maintenance
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines
• Snap fit removable becket pin

Specifications

• Sheave Ø: 40 & 24 mm | 1-9/16" & 15/16"
• Max Rope Ø: 8 mm | 5/16"
• Clevis Pin Ø: 5 mm | 3/16"
• Work Load: 350 kg | 770 lb
• Break Load: 1000 kg | 2200 lb
• Weight: 97 g | 3.4 oz
