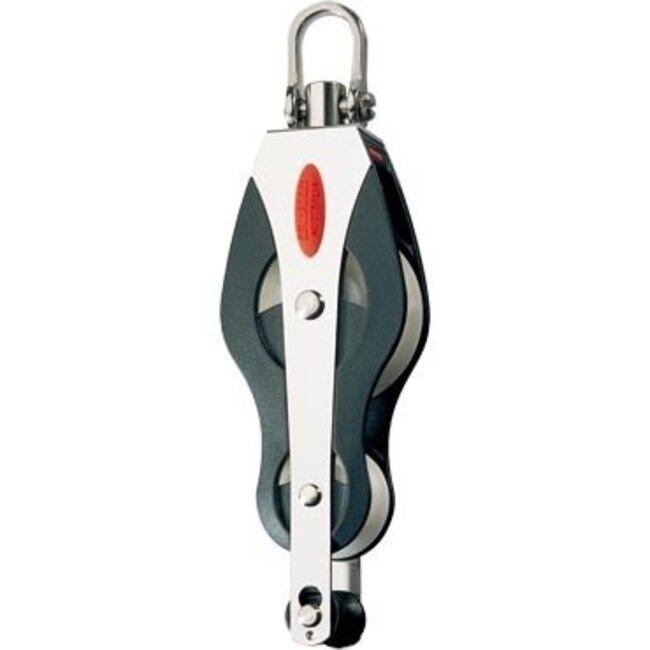

Series 40 Fiddle Block with Becket Fixed or Swivel Head

Product description

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools

• Sheave Ø 40 & 24 mm | 1-9/16" & 15/16"
• Max Rope Ø 8 mm | 5/16"
• Clevis Pin Ø 5.0 mm | 3/16"
• Work Load 400 kg | 880 lb
• Break Load 1000 kg | 2200 lb
• Weight 98 g | 3.5 oz
