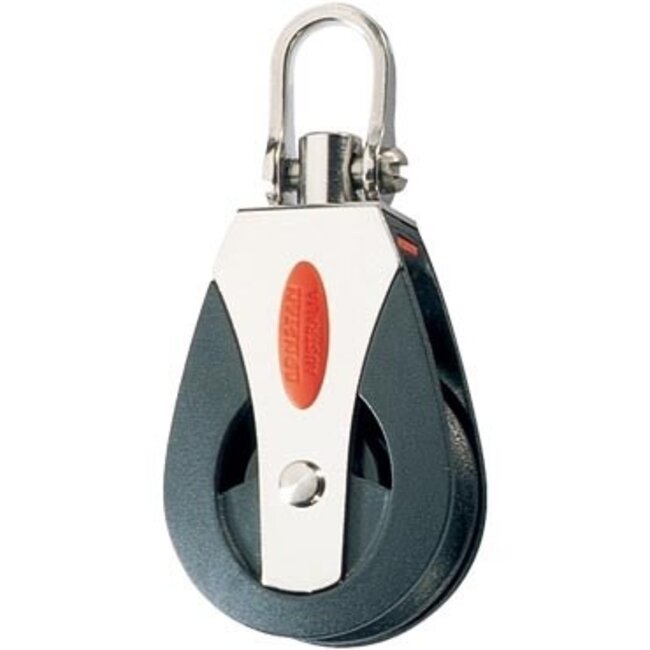

Series 40 Single Block with Swivel Ball Bearing

Product description

Sheaves running on ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required

FEATURES

• Low friction Acetal or Torlon® bearing system
• Lightweight
• Cheek cut-outs for easy bearing maintenance
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines

SPECIFICATIONS

• Sheave 40 mm
• Max. Rope 10 mm
• Pin 5.0 mm
• M.W.L. 350 kg
• B. L. 1000 kg
• Weight 70 g
