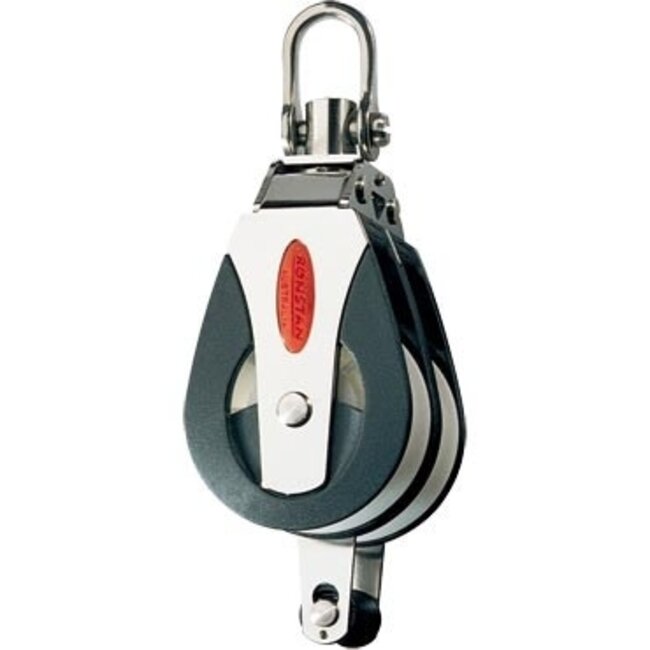

Series 50 Double Block with Becket Fixed or Swivel Head

Product description

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Head can be locked at 0° or 90° by engaging the grub screw in either the 0 or 90 degree position. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tool.

FEATURES

• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
• Slotted pin shackle eliminates fouled lines
• Snap fit removable becket pin

SPECIFICATIONS

• Sheave Ø 50 mm
• Max Rope Ø 12 mm
• shackle Pin Ō 6 mm
• M.W.L. 1000 kg
• B. L. 2000 kg
• Weight 271 g
