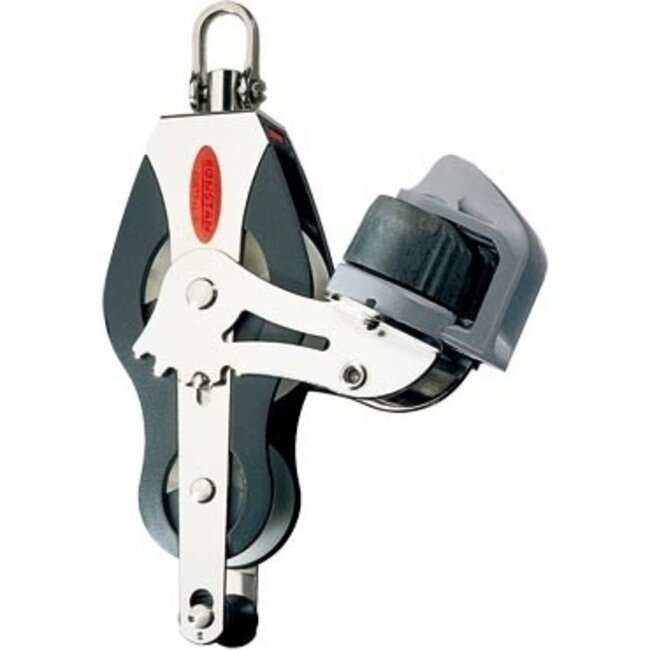

Series 50 Fiddle Block with Becket and Cleat Universal Head

Product description

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removeable so line can be spliced prior to fitting. Multi-position cleat arm.

FEATURES

• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines
• Snap fit removable becket pin
• Multi-position cleat arm

SPECIFICATIONS

• Sheave Ø 54 & 34 mm
• Max Rope Ø 10 mm
• Shackle Pin Ø 5 mm
• M.W.L. 750 kg
• B. L. 1500 kg
• Weight 318 g
