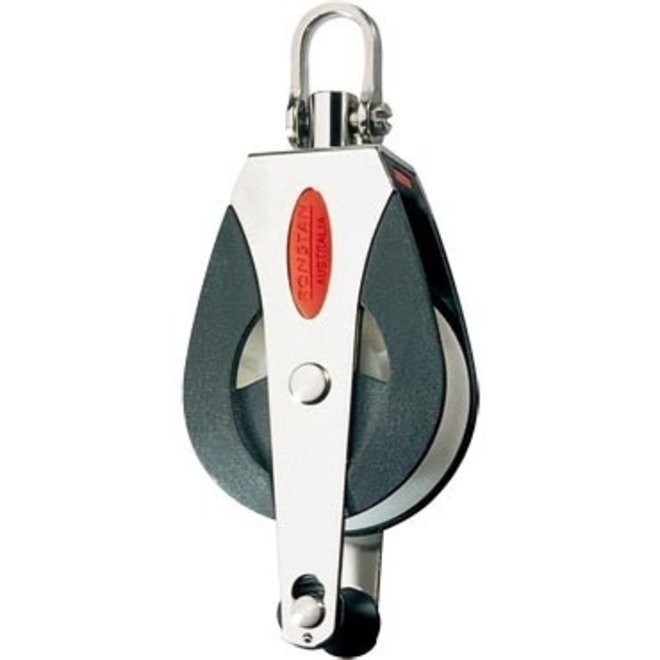

Series 50 Single Block with Becket Fixed or Swivel Head

Product description

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.

FEATURES

• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines
• Snap fit removable becket pin

SPECIFICATIONS

• Sheave Ø 50 mm
• Max Rope Ø 12 mm
• Shackle Pin Ø 5 mm
• M.W.L. 750 kg
• B. L. 1500 kg
• Weight 134 g
