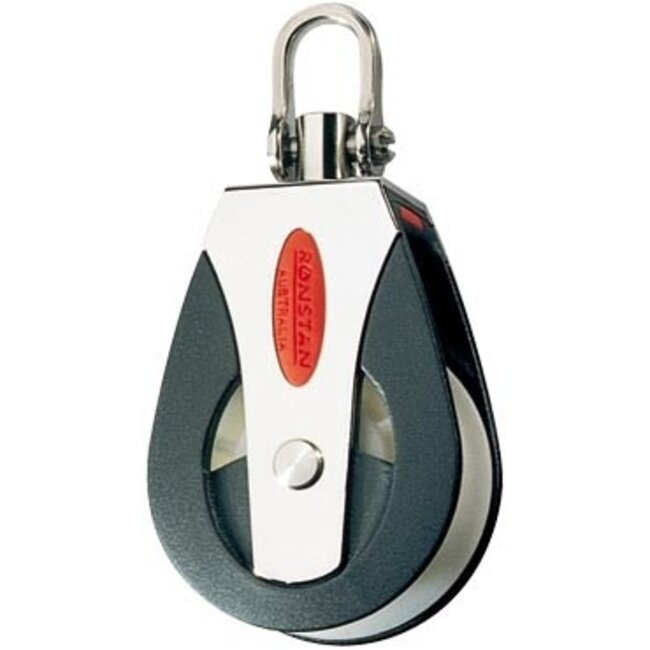

Series 50 Single Block with Swivel

Product description

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.

FEATURES

• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines

SPECIFICATIONS

• Sheave Ø 50 mm
• Max Rope Ø 12 mm
• Shackle Pin Ø 5 mm
• M.W.L. 750 kg
• B. L. 1500 kg
• Weight 118 g
