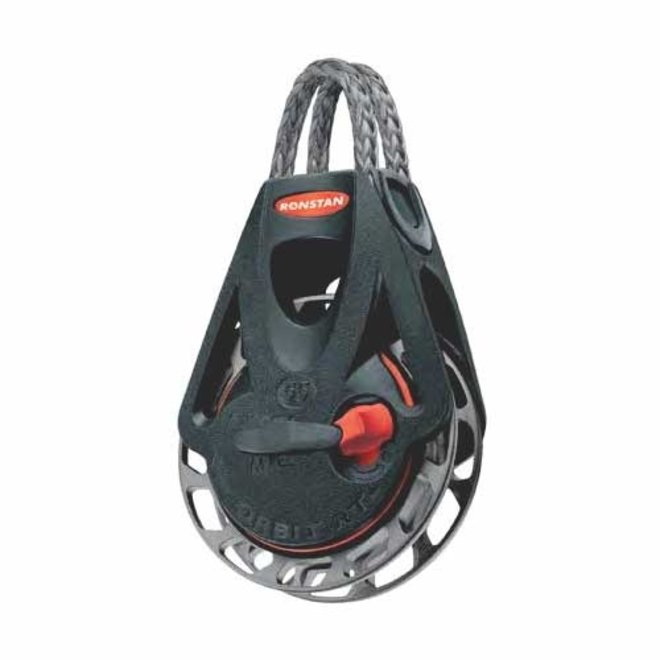

Series 55 Orbit Ratchet Single Block Auto/Manual

Product description

This unique ratchet block has both automatic and manual modes. In the auto mode of the ratchet mechanism engages when load is applied, but switches off when it's released. This lets the sheet run out smoothly and freely-great for rapid easing of the sheet and for gybing asymmetric spinnakers. In manual mode, the ratchet mechanism can be switched on or off as required.

Awesome ratchet block holding power

Quite simply, Ronstan Ratchet Orbit Blocks™ have the highest holding power available. Its holding power is up to 21:1. The unique sheave design has 12 gripping faces which directly resist loaded line movement. This Generation 2 design has straight resistance faces which both distribute the load and minimise rope wear. These faces are offset from the radial line, to draw the rope down into the gripping area when under load.

Simple and secure attachment

The Dyneema® Link is easily fitted and is retained securely by a moulded retainer clip. The flexible link can be left with one end attached to the block when fitting - no more lost shackle pins. The system is compatible with Dyneema®/Spectra® strops, webbing and caron connection points - much more so than steel loop tops or shackles. In auto mode, the sheet runs out smoothly and freely sas soon as the ratchet mechanism disengages. In manual mode, the sheave cross-hole geomtry eliminates the 'shuddering' run-out that you can expect from traditional v-groove ratchet blocks.

SPECIFICATIONS

• Sheave Ø 55 mm
• Max Rope Ø 10 mm
• M.W.L. 250 kg
• B. L. 750 kg
• Weight 78 g
