Product description

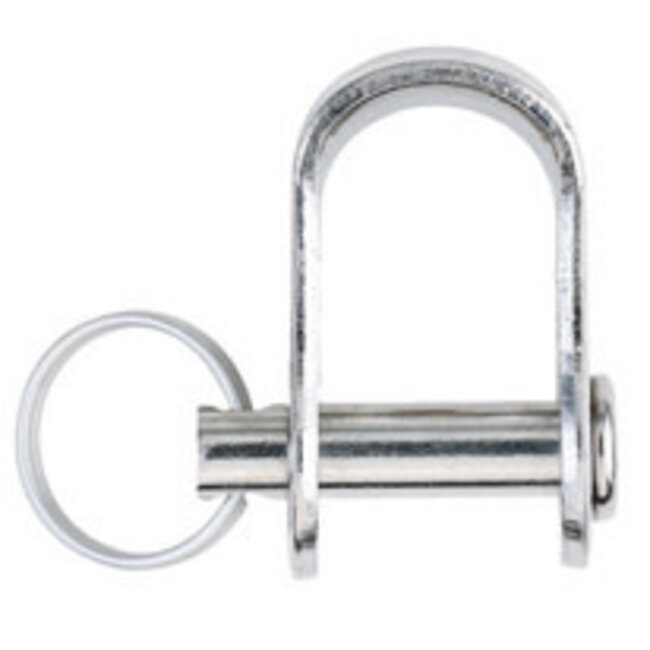

Harken Medium Stamped Shackle

Stamped Shackles

The stamped stainless steel shackles we use on Harken® Small Boat Blocks are available separately for use in a variety of applications. The breaking strengths shown are derived from weights supported by 80% of the length of the shackle pin, similar to the length spanned by a block's headpost.

Stamped shackles are appropriate for low loads. For higher loads, select forged and forged high-resistance shackles instead.

Specifications:

• Shackle pin Ø 5 mm
• Shackle pin Ø 3/16 in
• Weight 8 g
• Weight 0.29 oz
• Inside Height 12 mm
• Inside Height 1/2 in
• Inside Width 11 mm
• Inside Width 7/16 in
• Maximum working load 567 kg
• Maximum working load 1250 lb
• Breaking load 1134 kg
• Breaking load 2500 lb
