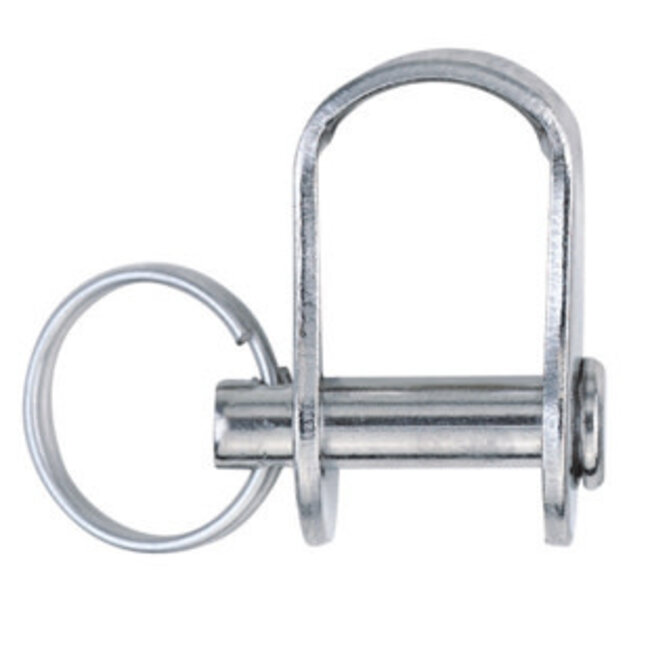

Shackle Clevis Pin Micro 5/32in

    Harken Shackle Clevis Pin Micro 5/32in

    C$6.00

    Product description

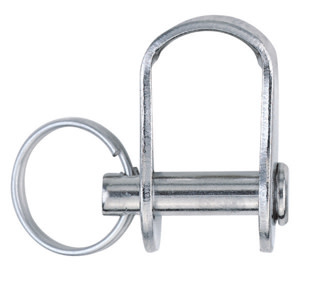

    Harken Small Stamped Shackle

    Stamped Shackles

    The stamped stainless steel shackles we use on Harken® Small Boat Blocks are available separately for use in a variety of applications. The breaking strengths shown are derived from weights supported by 80% of the length of the shackle pin, similar to the length spanned by a block's headpost.

    Stamped shackles are appropriate for low loads. For higher loads, select forged and forged high-resistance shackles instead.

    Specifications:

    • Shackle pin Ø 4 mm
    • Shackle pin Ø 5/32 in
    • Weight 5 g
    • Weight 0.18 oz
    • Inside Height 11 mm
    • Inside Height 7/16 in
    • Inside Opening 9 mm
    • Inside Opening 3/8 in
    • Maximum working load 270 kg
    • Maximum working load 600 lb
    • Breaking load 545 kg
    • Breaking load 1200 lb
