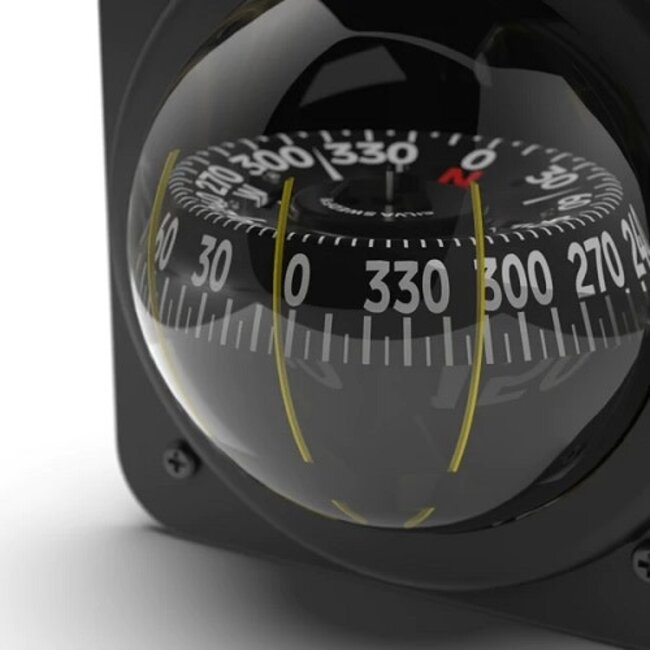

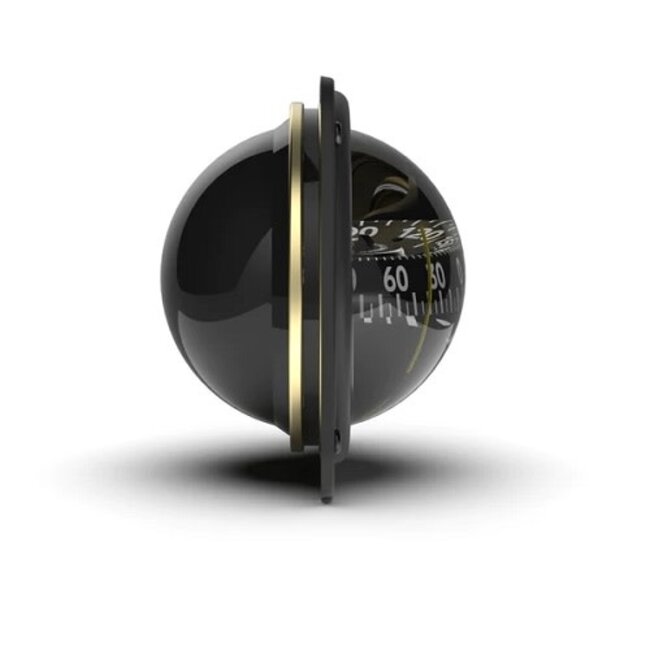

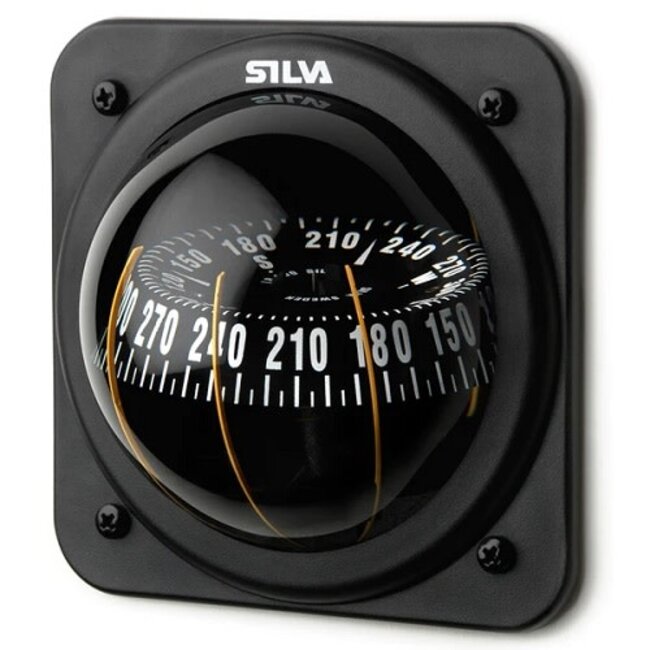

100P is a bulkhead-mounted compass designed for sailboats and yachtsmen that demand absolute accuracy, a steady card in all conditions and high heeling angles.
It is suitable for mast-mounting thanks to front reading, 30° heeling angle and three lubber lines for multi-angle reading. The main steering scale on the horizontal part and direct reading on the vertical edge make the 100P ideal for boats with a sitting as well as a standing helmsman. With its compact size, 100P will it fit in most spaces and boats.
Â
| Accuracy |
± 0,5° (8.9 mils) |
|---|---|
| Apparent card diameter |
105mm |
| Built-in compensator |
Optional |
| Card type |
Cone |
| Compatibility |
Sailboats |
| Dimensions |
128x115x103mm |
| Gimballed cradle |
No |
| Heeling angle |
Roll: 30° Pitch: 30° |
| Heeling angle scale |
No |
| Illumination |
Optional |
| Lubber lines |
Centre and 2x side view at 45° |
| Material |
ABS, Acrylic |
| Memory ring |
No |
| Mounting |
Bulkhead |
| Mounting angle |
+10° to +110° |
| Protective cover |
No |
| Temperature operating range |
-10°C to +70°C |
| Variant |
Magnetic Equator, Magnetic North, Magnetic South |
| Weight |
769g |
