• BUILT IN ILLUMINATION
• FLOATS IF DROPPED IN WATER
• MULTI-MOUNTING

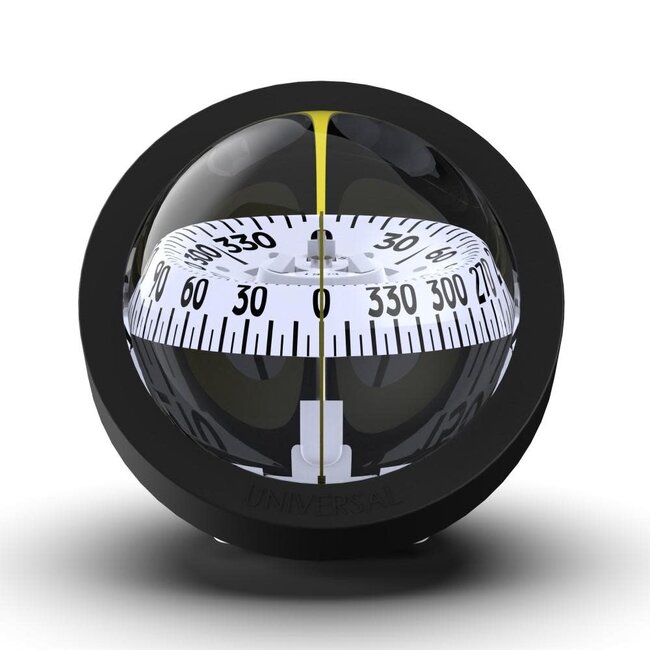

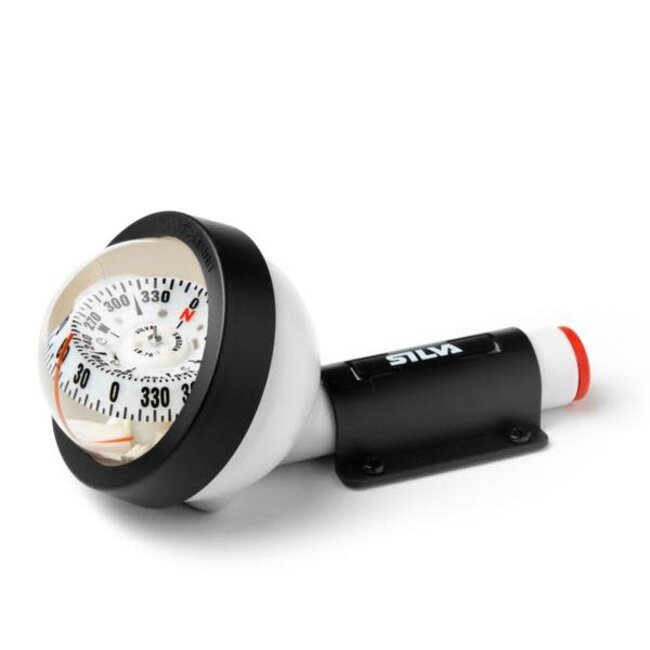

70UNE is a universal compass that can be used in its bracket as a steering compass or as a handheld sighting compass. If dropped in the sea, it floats! Suitable for small boats, kayaks, dinghies, canoes and more.
The compass can be installed in any inclination or position – even upside down. It is easily detached from the bracket to enable temporary sighting use or for security purposes.
70UNE comes with a waterproof switch and built-in-illumination, powered by two watch batteries, that makes it ideal for night navigation. With a main steering scale on the horizontal part and direct reading on the vertical edge,
This universal compass is ideal for boats with a sitting as well as a standing helmsman. The curved lubber line enables swift and clear reading at a glance without parallax errors.
Specifications:
Accuracy ~ +/- 17.8mils/1°
Apparent card diameter ~ 70mm
Built-in compensator ~ Optional
Card type ~ Cone
Compatibility ~ Kayaks, powerboats, sailboats
Heeling Angle ~ Roll: 30° Pitch: 360°
Heel Angle Scale ~ No
Illumination ~ 12V., Red
Materials ~ Acrylic, ABS
Mounting ~ Bracket, Handheld
Mounting angle ~ any
Size ~ 86x175mm
Temperature operating range ~ -10 to +70 °C
Variant ~ Magnetic North
Water resistant ~ Yes
Weight ~ 500g
