Harken Spinnaker Staysail Furling System - 4mm Line

Spinnaker Staysail

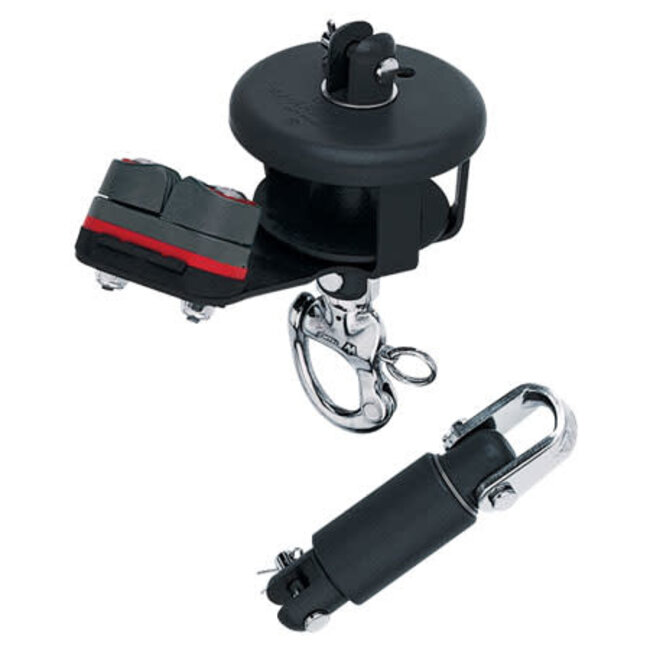

Furled staysails are easy to hoist rolled and can be deployed or doused from the cockpit. In marginal conditions the sail can be struck instantly without changing the trim of the boat. Multiple stacked races of Torlon® ball bearings ensure smooth operation under load. Systems include a lower drum with snap shackle, fairlead and Cam-Matic® cleats, and an upper swivel with provision for halyard attachment.

Systems are sized to handle loads of 2:1 halyards, and multiple stacked races of Torlon® ball bearings ensure smooth rotation under load. Fairleads allow the furling line to lead aft to the cockpit.

Torlon® is a registered trademark of Solvay Advanced Polymers.

Specifications:

• Drum Ø 73 mm
• Drum Ø 2 7/8 in
• Swivel Ø 25 mm
• Swivel Ø 1 in
• Height 132 mm
• Height 5 3/16 in
• Swivel length 106 mm
• Swivel length 4 3/16 in
• Maximum line Ø 4 mm
• Maximum line Ø 5/32 in
• Maximum halyard load 431 kg
• Maximum halyard load 950 lb
• Weight 366 g
• Weight 13 oz
• Maximum luff length 15.25 m
• Maximum luff length 50 ft
• Maximum distance from luff to clew 4.1 m
• Maximum distance from luff to clew 13.5 ft
• Note Smaller line may be required for spinnaker staysails with long foot lengths.
