Product description

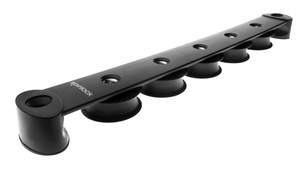

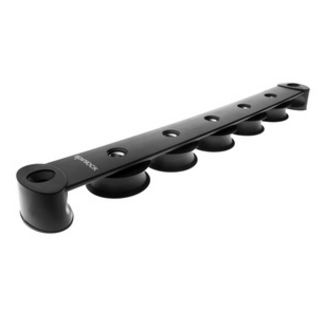

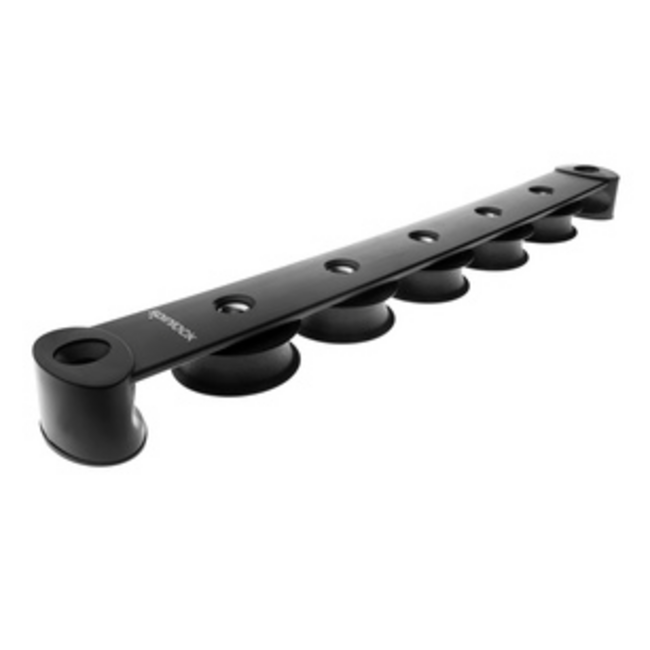

Spinlock 5-Sheave 50mm Deck Organizer

T-Series Organisers lead multiple lines back from the mast to banks of powerclutches

• Minimal overall length
• Efficient bearings surface reduces winch effort and increases halyard life
• Integral end fairings for safe side loading
• Asymmetric version reduces deck footprint and saves weight
• T50 can ‘stack’ for limited deck area or adding extra capacity. T50 will also ‘stack’ on a TC50
• Vari-camber feature: T50 Organisers are designed to follow the curve of the deck when fitted

Specifications:

• Sheave Diameter/Type: 50mm (2") composite
• SWL per sheave: 1000kg (2200lbs)
• Total SWL per unit: No of sheaves x500kg (1100lbs)
• Line Diameter: Up to 14mm (9/16")
